Gridfinity - Divided Vase Bins with Labels (120 models)

Updates

• 2023-12-01 - Added single corner and half grid bases for even more minimal printing
• 2023-09-29 - Replaced the 1x3x3u x5 bin which wouldn't slice properly
• 2023-02-04 - Original post using the Gridfinity v5 spec

Also see my other Gridfinity Bins:

• Vase Mode Bins (no label flaps)
• Vase Mode Bins with Labels
• Divided Vase Bins (no label flaps)

Description

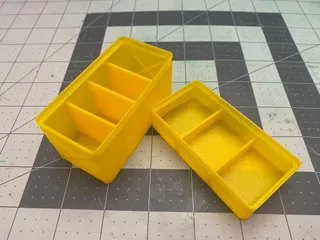

Vase mode bins made even better with built-in dividers. Now you can print bigger bins that are subdivided rather than multiple small bins.

• 120 vase mode bin models
• Sizes from 1x1 w 2 dividers up to 1x5 with 8 dividers
• Heights from 3u up to 8u (6u is standard)
• 5 matching bases
• A 1x5x6u x8 divider bin only takes 42g of filament

These bins are based on vase mode bins with label flaps that I originally posted, initially based on the excellent design by Francesco Iannone.

Basics

Print the bins in 2 parts: base and the top (bin). Glue the pieces together for a very simple, bin.

Recommended  slicer settings

Bins

• Vase mode
• Bottom layers: 4
• .4mm nozzle
  • Wall thickness: .8mm
  • Layer height:
    • .2mm below the label flap
    • .12mm for the label flap and upper lip
• .6mm nozzle
  • Wall thickness: 1.2mm
  • Layer height:
    • .28mm below the label flap
    • .2mm for the label flap and upper lip

Bases

Print in the top-down orientation found in the STL file. This will give you a very clean top and clean magnet holes.

• ≤15% infill

TIPS

• Faster Bases: Adrian-CrimsonAzure pointed out that for larger bins, you can get away with printing 1x1 bases and then glue them to just the corners of your larger bins. For a 4x4 this means printing just 4 1x1 bases rather than 16 base grid. If you're short on filament or time, this is a great option.
• Top Stability: To make the bin lip more stable, try printing the top of the model (from where the lip starts to the top) at a shorter layer height than the rest of the model. I go from .2 mm to .12 mm with a .4 mm nozzle. Thanks to kevman for this suggestion.
  • PrusaSlicer/SuperSlicer - Use the height range modifier to make this adjustment.
  • Cura - Try enabling Adaptive Layer Height to high quality

Files

These files were done up with Tinkercad and can be found here:

• Bases - https://www.tinkercad.com/things/gkaMZJynDus
• 3u Bins - https://www.tinkercad.com/things/8CDAQZSZaXd
• 4u Bins - https://www.tinkercad.com/things/9pVXnFOyuNQ
• 5u Bins - https://www.tinkercad.com/things/3C6qRDaojwk
• 6u Bins - https://www.tinkercad.com/things/6UwlnZBLLib
• 7u Bins - https://www.tinkercad.com/things/5tMfRTqOqMu
• 8u Bins - https://www.tinkercad.com/things/iRemt67XyUh

Feel free to customize to your own needs.

Replaced the 1x3x3u x5 bin which wouldn't slice properly
