Eurobox Sleeve to connect lid to box

This sleeve allows to clip it on to an eurobox and to an eurobox lid. It functions like a hinge when you open the box. It is easy to print and helps for easy attachment by help of an angled cut.

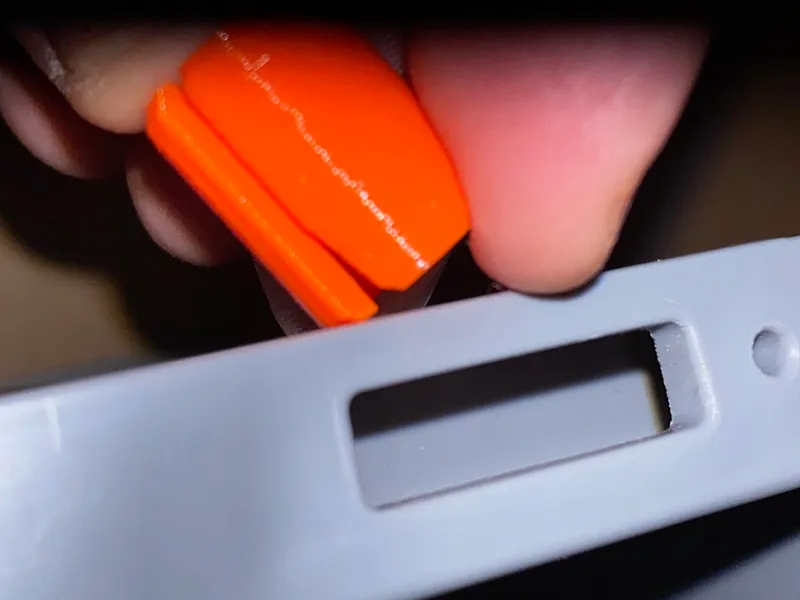

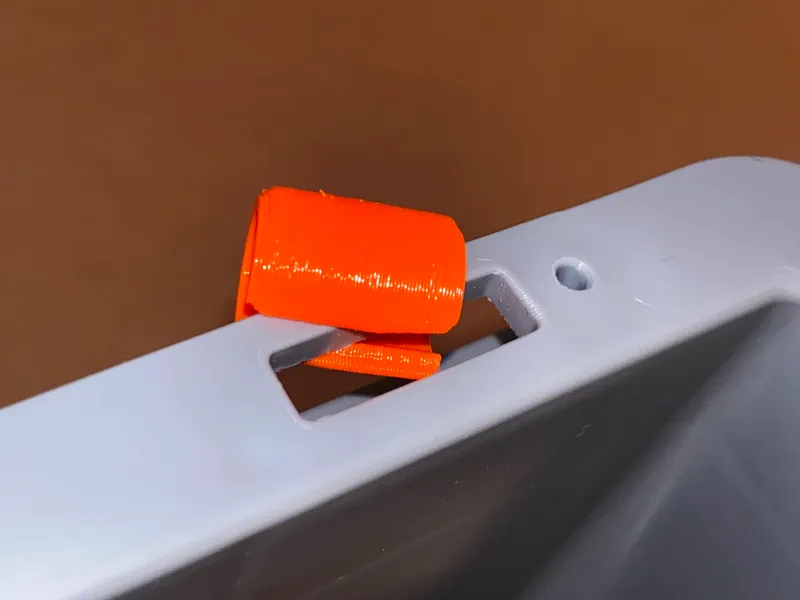

To easily clip the sleeve on, start with the thicker part (box or lid). Don't try to clip it on both simultaneously (box closed by lid).

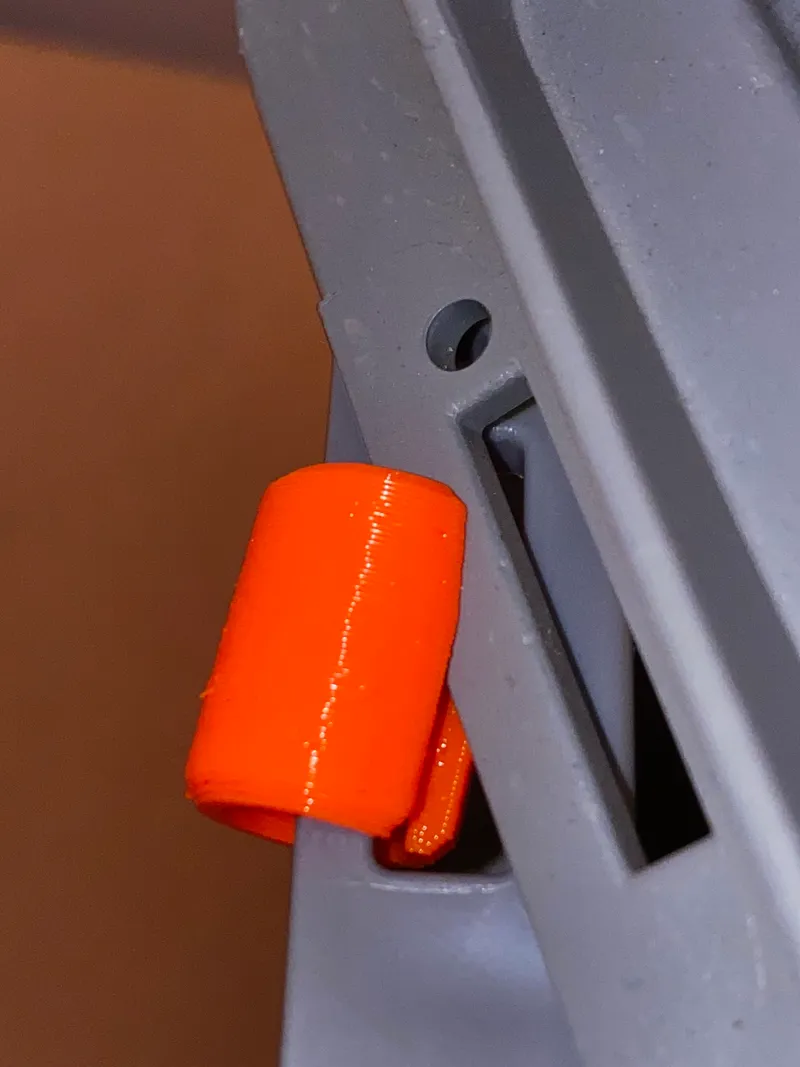

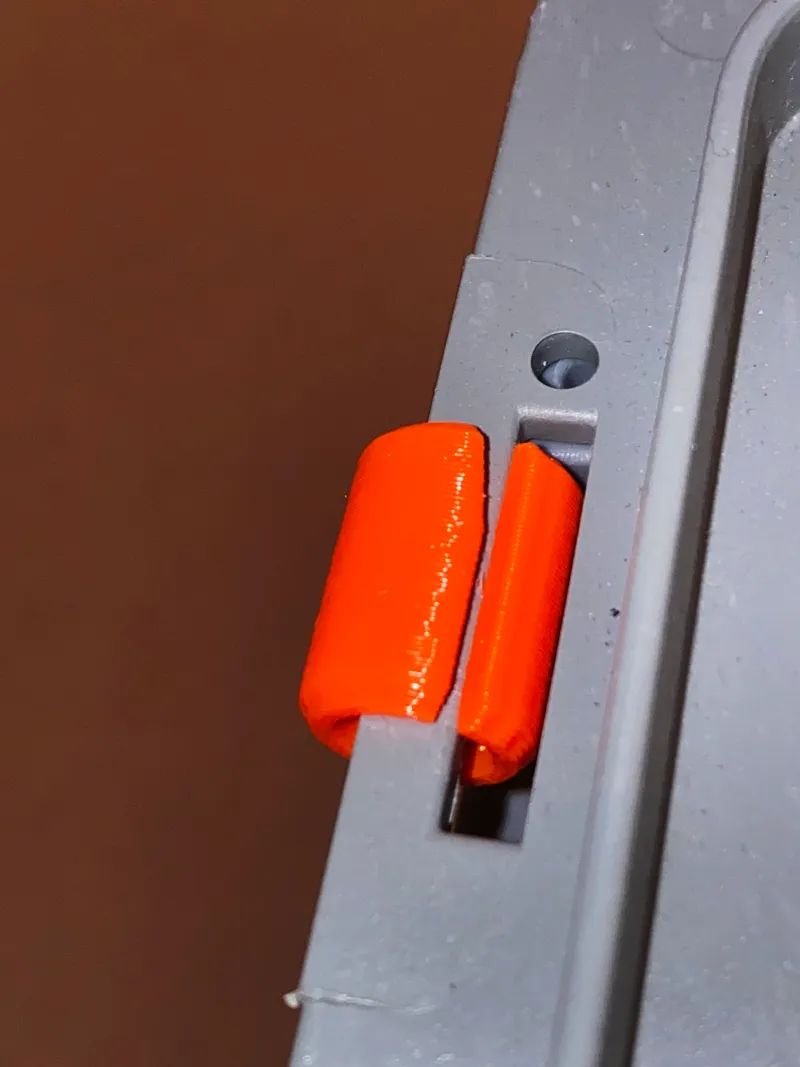

When clipped to the first part, turn it so that you can slide the next part through the open cut of the sleeve. Start sliding it in with the angled end, what should help to get it on.

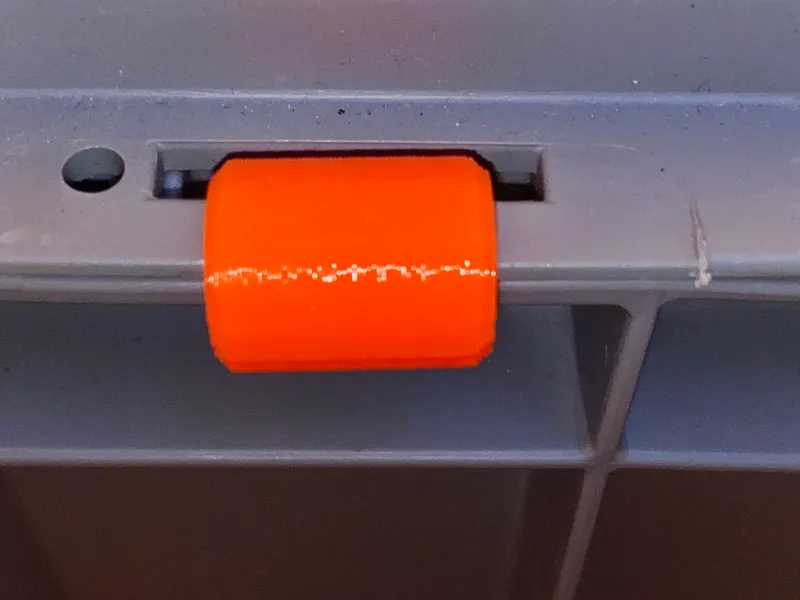

Done!

When you accompany the sleeves with the right clips and grip inserts you get a nicer, closed, colorful and more functional eurobox! I put all needed parts - including the sleeves from here - to the remix assembly Eurobox Support (Grips, Clips, Sleeves).

I printed with PET-G, 0.3 mm resolution, 3 outer walls, no supports.
