3 tools (pliers) holder for HSW honeycomb storage wall

Holder for 3 tools (one snipper and two pliers) for the honeycomb storage wall (HSW).
94
479
17
1393
updated August 7, 2024

Description

PDF

This holder allows you to store 3 pliers of different sizes on the honeycomb storage wall by RostaP. I created it because almost all available holders has only 2 sections of equal width and length, whereas most sets on Amazon have 3 pieces (two pliers, one snipper) and the tools vary in width and handles diameter.

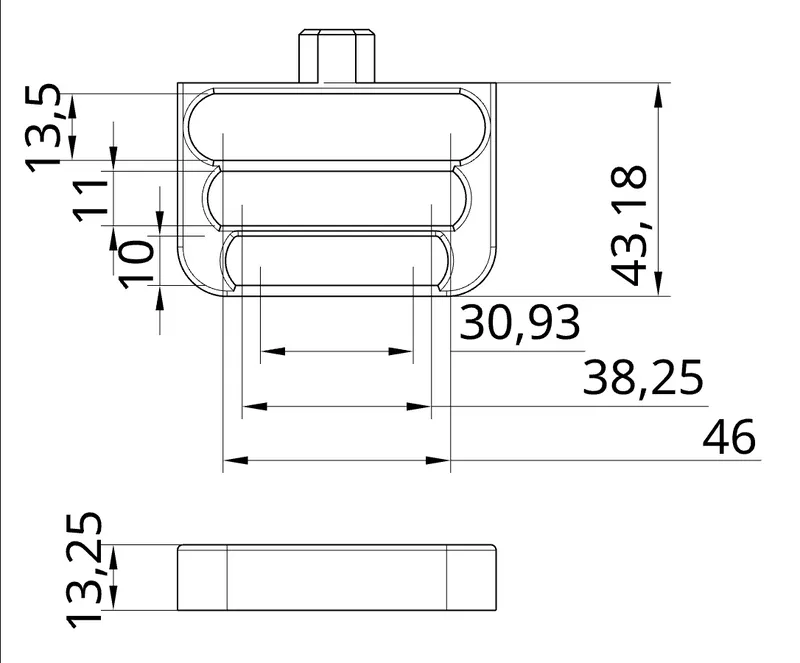

It has 3 slots of different length and width, to accommodate the 3 tools in a more or less aligned way. I modelled it using the measures from my own set (one of the cheapest on Amazon), you can find all the measures here:

I printed it with these settings and it came out great:

  • Nozzle diameter 0.6 mm
  • Layer height 0.3 mm
  • 15% infill
  • Avoid crossing perimeters
  • 5mm brim

To mount it, you'll need one of the hollow inserts from the original model linked above (the single slot one is called "insert-empty.stl".
