Nice addition to my Alex. Thanks for sharing.
Drawer Dividers not only for IKEA Alex Drawer Units

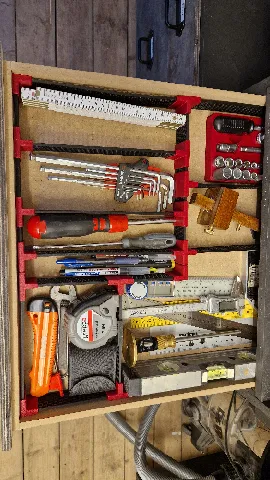

I only use this for the top drawer of my ALEX Drawer Unit, where I have all the tools I regularly use.
322
1060
14
5670
updated
May 30, 2023
Makes
Comments

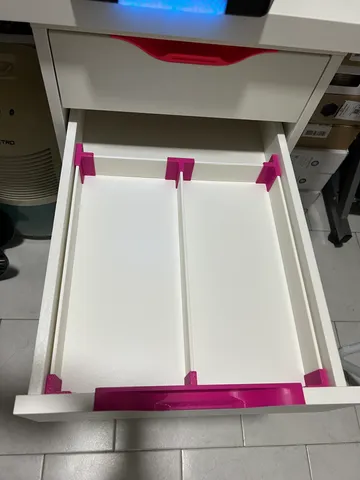

Printed the following size and requirements
Part/Length-( count)
---
184 - 3
154 - 10
113 - 4
Corners - 4
T beams - 6
Crosses - 2
Fits well. Printed with 3 walls, no top or bottom solid layers. Rectilinear infill
Also works for Expedit/Kallax drawers. I adjusted the rails to the size needed and removed the top and bottom layers to save filament.
Great model, easy to print. Still working on how to sort everything in here..

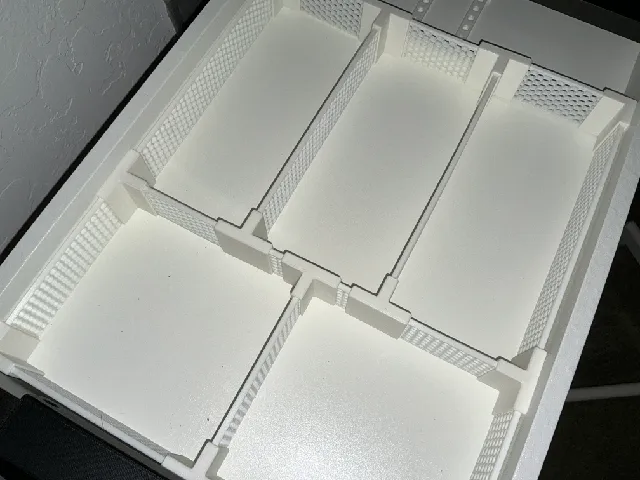

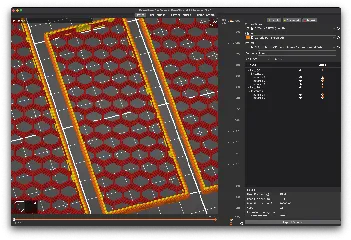

Works very well, thanks a lot. I made the rails with honeycomb fill without top and bottom layer to save filament and time. Two drawers done, only 8 to go... (edited)
@RiccardoIanna_925018 Great idea. What settings did you use for the honeycomb infill, how many walls and what layer height?
@mindwipe : 3 perimeters, 0.2mm layer height, 10% infill, honeycomb pattern. No support. Very quick to print, with little filament.
View 2 more comments
Can you share the dimensions of the pieces used in the photo?
Very useful model. it would be useful to indicate the measurements of the pieces to be used.
