Filament guide for AMS Bambu Lab X1

Just what was looking for to protect my AMS form the abrasive filaments.

Danke für die Bewertung

best of them all ;-)

Amazing design! Very useful and easy to mount.

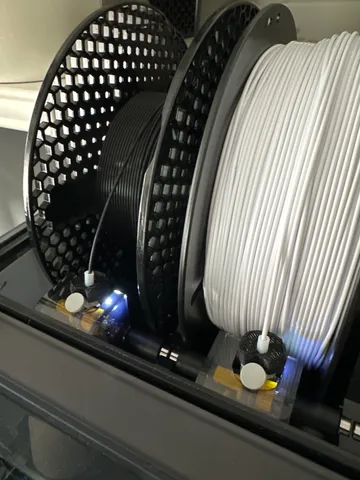

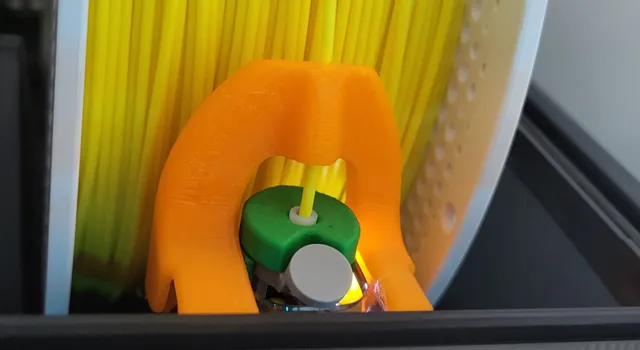

English Translation: In order to protect the guide funnel of the AMS from wear caused by the filament being fed through, here is an insert for protection There are already several solutions to avoid possible wear and tear on the filament feed of the AMS. My approach is different. Simply slide the printed my filament guide from the back onto the filament entry of the AMS. Then just insert a 12mm long PFTE tube Ø4 from the top to the bottom of the conical AMS introduction done. Filament ABS Technical pressure plate Temperature print bed 90° Nozzle temperature 240° layer height 0.12 Speed 70mm/s With support structure.
