Sovol SV06 ADXL345 mount for the toolhead
This is a remix of the original model. This version gives a better clearance with the extruder tension knob.
24
184
1
2140
updated
January 24, 2023
Description
PDFYou need 4pcs M3*8mm screws and 2pcs M3 nuts:

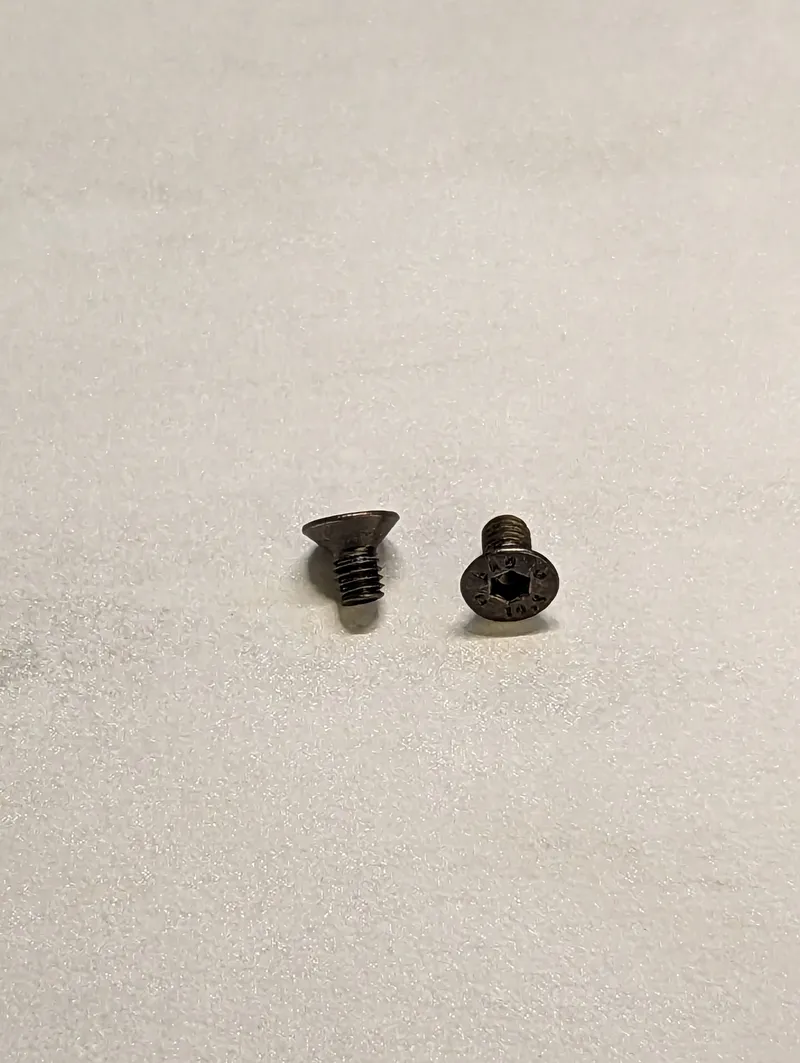

- Two for securing the mount to the toolhead (replacing the original screws):
- Two screws + two nuts for securing the PCB to the mount itself
It is advised to use a twister pair for connecting the accelerometer to a raspberry pi, as SPI interface is quite sensitive to the interference.
I've printed using 0.4mm nozzle with 0.2mm layer and 100% infill
