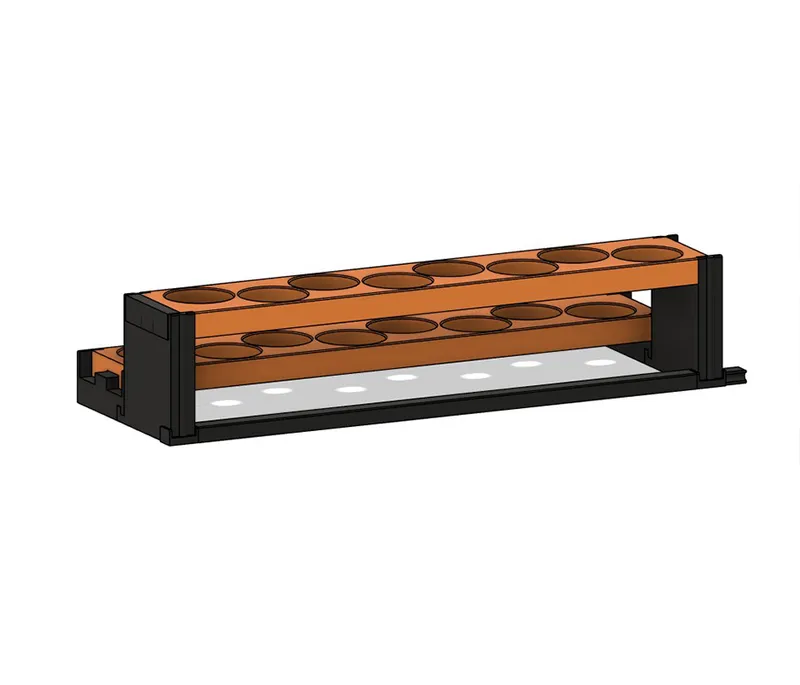

Paint Stand

Build your own paint storage.

This will be a long-term project.

Feel free to show off your combinations and give inspiration to others. Thanks!

Fits bottles and cans with dimensions 26mm 30mm 32mm and 36mm.
Can be built together with different steps, 20mm 50mm 80mm 110mm 140mm high.
These can be built together to fit your painting table.
The dimensions of one shelf are 220x40mm.

Start with "Shelfstand 20mm start" and build so it suits you.

Use “Sheld end” for a nicer finish on the shelf.
With the right bottle, there is the possibility to put it upside down.
It is also possible to store brushes and pencils in the storage unit.
The front pen storage is just loose between the shelf stand.

You can start use the "container" and "Storage" unit on the "Shelfstand 50mm".

I glued the “Brush Lid for container” together with the “container” unit.

New update 2025-08-22

A big update of the paint stand is now here. I will say thanks to "stylesuxx" here on printables who gave me inspiration for this update.

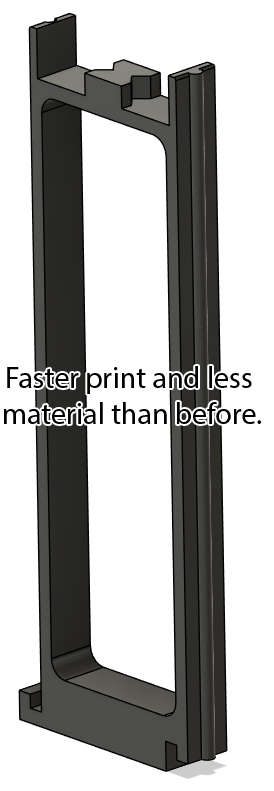

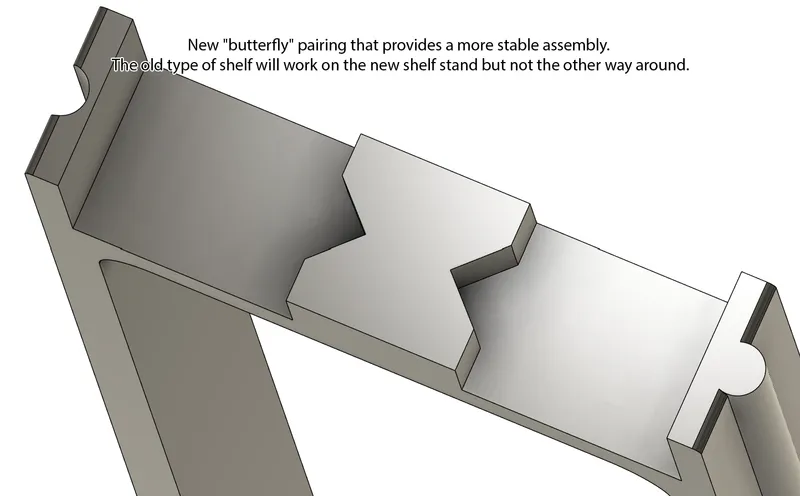

The new thing is that the shelfstand does not need as much material to be printed, this also gives a faster print. The new butterfly lock gives a more stable assembly.

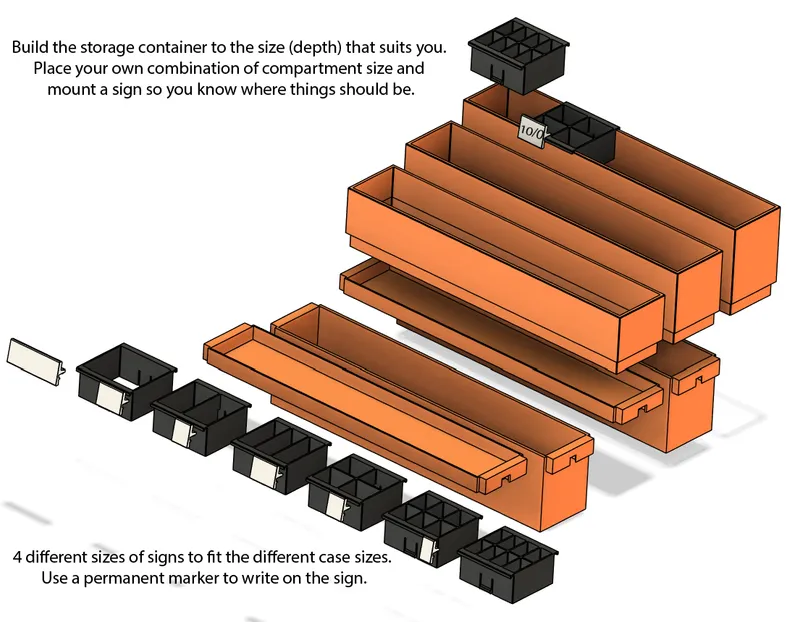

Different sizes of storage with 6 different compartment systems so that you can build it exactly how you want it. The possibility of mounting a sign where you can write what should be in the compartment.
Those of you who have already printed a lot of shelves and want to build further can still use your old shelves, even if you continue to print the new shelf stand.

I move old files to a special folder.

Shelfstand 20mm Start butterfly lock
Shelfstand 20mm butterfly lock
Shelfstand 50mm butterfly lock
Shelfstand 80mm butterfly lock
Shelfstand 110mm butterfly lock
Shelfstand 140mm butterfly lock
Shelf 8x26mm butterfly lock
Shelf 22.5 5x26mm butterfly lock for Shelfstand 140mm
Shelf 22,5 4x26mm butterfly lock for Shelfstand 110mm
Shelf 22,5 3x26mm butterfly lock for Shelfstand 80mm
Shelf 22,5 3x26mm butterfly lock for Shelfstand 50mm
Shelf 22,5 2x26mm butterfly lock for Shelfstand 20mm
Extension frame 50 mm to Storage big
Extension frame 40 mm to Storage big
Extension frame 30 mm to Storage big
Shelf storage small 10mm butterfly lock
Shelf Storage big 50mm butterfly lock
1 compartment for Shelf Storage big
2 compartment for Shelf Storage big
3 compartment for Shelf Storage big
4 compartment for Shelf Storage big
6 compartment for Shelf Storage big
8 compartment for Shelf Storage big
Sign 38mm
Sign 18,5 mm
Sign 12 mm
Sign 8,5mm

New update 2025-01-03

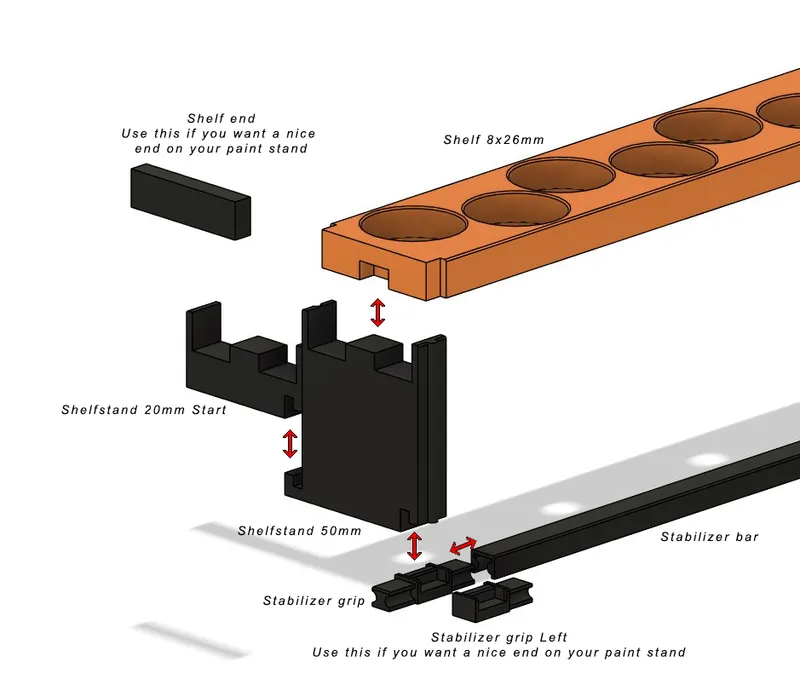

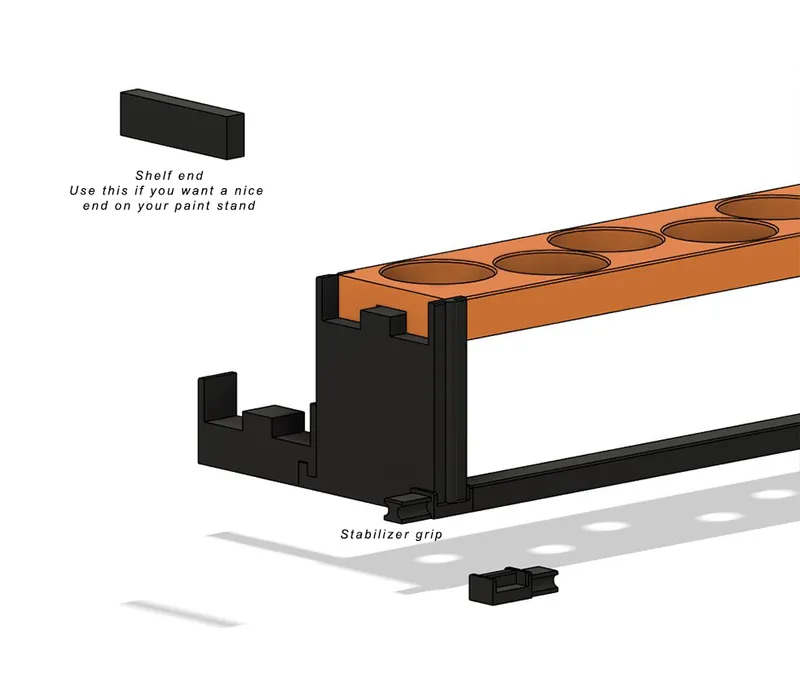

This is a stabilization package for the paint stand that is mounted on the back of the stand, this is to get a slightly more stable rack.

Then I have also made new corner shelves (22.5) so that they fit both left and right.
I leave the old corner shelves on the homepage for download, but there will be no stabilization bar for these shelves.
Assembling the Stabilizer Bar with Stabilizer grip can be a bit difficult as the fit is very accurate, this is to make it stable.

Shelf 22,5 2x26mm V2 for 20mm Shelfstand.STL
Shelf 22.5 3x26mm V2 for 50mm Shelfstand.STL
Shelf 22.5 3x26mm V2 for 80mm Shelfstand.STL
Shelf 22.5 4x26mm V2 for 110mm Shelfstand.STL
Shelf 22.5 5x26mm V2 for 140mm Shelfstand.STL
Stabilizer Bar 22,5 for Shelfstand 20mm.STL
Stabilizer Bar 22,5 for Shelfstand 50mm.STL
Stabilizer Bar 22,5 for Shelfstand 80mm.STL
Stabilizer Bar 22,5 for Shelfstand 110mm.STL
Stabilizer Bar 22,5 for Shelfstand 140mm.STL
Stabilizer Bar for Shelfstand.STL
Stabilizer Grip Left and Right.STL
Stabilizer Grip Left.STL
Stabilizer Grip Right.STL

Update 2024-05-29

Finally, here it is! The unit that allows you to have a clean table when you are working on a project. When the bottles is in use, you can place the bottles here so you don't get the wrong shade of ink during the painting process.
Also comes with a device, so the bottles can stand upside down to drain if it starts to run out of ink.

Bottles in use Storage.STL
Bottles in use Storage extra unit.STL

Update 2024-01-30

Stronger shelf of Shelf4x50mm, Shelf4x46mm and Shelf4x43mmSquare.

A tip!
The old version of these “Weak” shelf  can be used on the first Shelfstand 20mm if you have the Pen storage stable.stl underneath.

Shelf4x43mmSquare Stronger.STL
Shelf4x46mm Stronger.STL
Shelf4x50mm Stronger.STL

Update 2024-01-21

11 new files!
New shelves to fit 32mm bottles. 1 Shelf for 6 bottles and 10 pieces 22.5° angled shelves for bottles dimension 32mm, for right and left turns.

Shelf22,5Left 1x33 Shelfstand20mm.STL
Shelf22,5Left 1x33 Shelfstand50mm.STL
Shelf22,5Left 2x33 Shelfstand80mm.STL
Shelf22,5Left 2x33 Shelfstand110mm.STL
Shelf22,5Left 3x33 Shelfstand140mm.STL
Shelf22,5Right 1x33 Shelfstand20mm.STL
Shelf22,5Right 1x33 Shelfstand50mm.STL
Shelf22,5Right 2x33 Shelfstand80mm.STL
Shelf22,5Right 2x33 Shelfstand110mm.STL
Shelf22,5Right 3x33 Shelfstand140mm.STL
Shelf 6x33mm.STL

Update 2023-11-25

Have made a unit for drying the brushes. (Drying_Brushdrystand_V2_34x23.STL) It only fits in the outer compartments in the Bigger Brush Lid for container.

Has also made 3 other insertion so you get more individual compartments for brushes for the Bigger Brush Lid for container.
This only fits in the 8 middle compartments.

Brushdrystand_2_34x19.STL
Brushdrystand_3_34x19.STL
Brushdrystand_6_34x19.STL

Update 2023-08-06

10 new files!
If your table getting too short….No problem, Just use the  22.5° angled shelves (for bottles dimension 26mm) for right and left turns.

Update 2023-06-09

3 new shelves for round bottles 46mm to 50mm and allso square bottles with dimensions 43x43mm.
However, the shelf above must be replaced with a new 8x26 shelf with recess.
It is not possible to use two shelves one after the other of the types “Shelf 4x46mm” and “Shelf 4x46mm”, must have a Shelf8x26 with recess in between.

Update 2023-04-18

New version on "Pen storage" file. It will keep it in place better.

File: “Pen storage stable.stl”

Update 2023-03-23

Have update a better lid for the container so that the brushes going more stable in the stand.

File: “Bigger Brush Lid for container.stl”

Happy printing!
