Silica Gel Container for Drybox

A Silica Gel Container for a drybox with spots for 2 80mm fans
7
27
0
523
updated January 21, 2023

Description

PDF

Made a silica gel container for my new dry box and decided to have fans on it to hopefully make it more efficient (don't know if the fans actually improves anything but it was a fun little build).

Print Instructions:

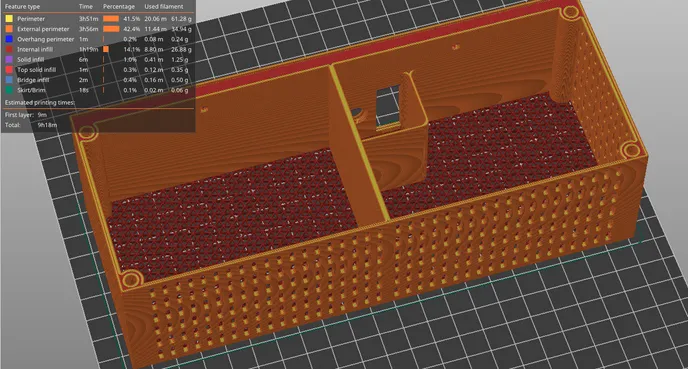

Only used infill on the bottom of the base to let through air. You need to use Hight Range Modifier 0-1.6mm.  I found that using the settings in the image below you get small enough holes that no silica gel falls through. If you are not using fans you can do the same with the Lid but then you would probably want 5 perimeters at least.





Whats needed:

2 M3 screws (for attaching it to the drybox)
4 M3 heatset inserts (used on Base)
4 M3 12mm screws
4-8 M3 6mm screws for the fans (Optional)
Around 190g of filament

Used Eryone Petg red and silver glitter.
