Fitting Socket with Filament Guide for Dry Box

17 reviews
Compact sockets for PTFE tube fittings with a filament guide. In addition, optional parts can be used to add angles.
42m
1× print file
0.15 mm
0.40 mm
5.00 g
318
1049
21
3698
updated October 19, 2023

Description

PDF

Updated ─

[ March 15, 2023 ]

Plates to close the holes have been added when changing the position of the fitting socket.

[ January 26, 2023 ]

A PTFE tube cap has been added.
 ─ *Printing with flexible materials such as TPU is recommended.
 ─ *Adjust the hole size by scaling with a slicer app to fit your tube. (e.g. 101%, 99.5%, etc.)

[ January 23, 2023 ]

Alternative types of PC4-01 and PC4-M10 with the flat bottom of the screw hole have been added.

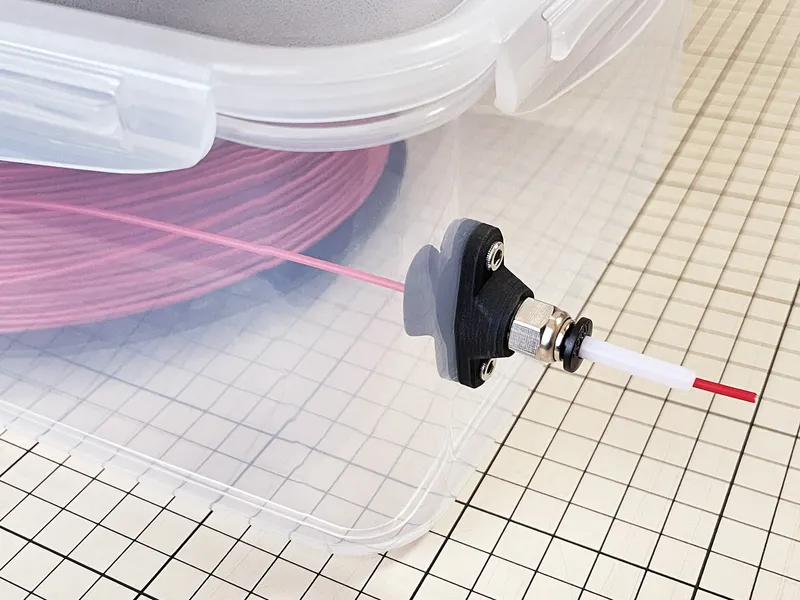

Compact sockets for PTFE tube fittings with a filament guide for use in a dry box.
In addition, optional parts (red ones in the picture) can be used to add angles.




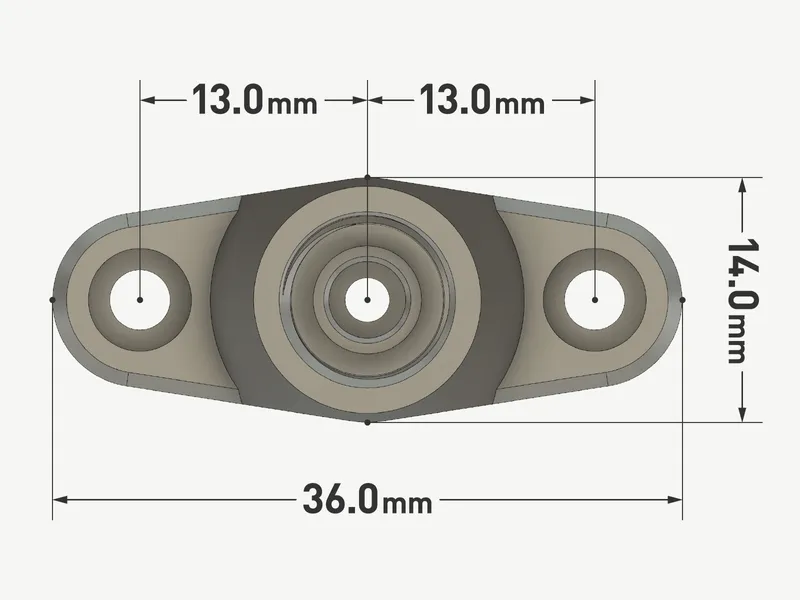

Compatible with 3 Types of Fittings

  • PC4-01 (1/8)
     ─ *Similar to M10, but different. The screw diameter is about 9.5 mm.
  • PC4-M6
  • PC4-M10



Bill of Materials

  • PTFE Tube Fitting ─ x1
  • M3 Hex Nut (or Tap Processing) ─ ×2
  • M3 Screw
     ─ [0° mount]  8mm or more ×2
     ─ [20° mount]  15mm or more ×2
     ─ [30° mount]  18mm or more ×2
     ─ [40° mount]  22mm or more ×2
