Supermicro FDD Bay ICY BOX Front Panel Adapter

A set of parts to adapt the FDD bay on a Supermicro CSE-835 server to accept an ICY BOX frontpanel.
1h 26m
1× print file
0.20 mm
0.40 mm
16.00 g
1
11
0
566
updated August 2, 2023

Description

PDF

A set of parts to adapt the existing FDD tray on a Supermicro CSE-835 server to accept an ICY BOX front panel.

Assembly

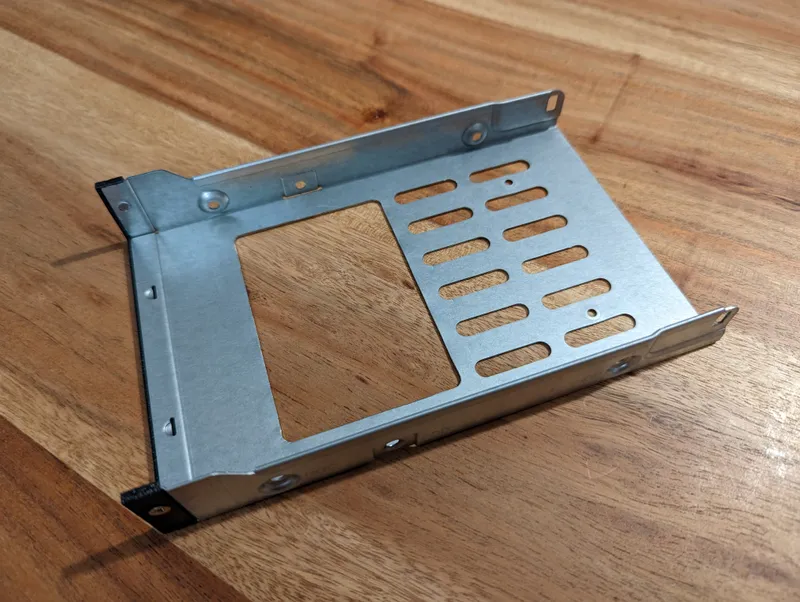

The FDD tray needs to have it's front replaced with the printed bezel and the screws might need to be filed down on the inside to make space. Also cutting out a larger portion of the slotted back side makes installing the cables much easier.

Notes

Made with the personal version of Autodesk Fusion 360 therefore non commercial only.

Source file included.
