Voron - Skirt Trident - Custom

Prefab Voron Skirt - Step File to do custom infill skirt as shown in Steve Builds stream. This is just .STEP
70
614
3
3822
updated January 1, 2024

Makes

Comments

Hi, What corners are you using for this model. I want to use your skirts on my Anycubic Chiron, but need fitting corners that screw into the 2020 extrusion via T-Nut.

Worked great for my Trident 300, except for the fan support. I used a different model for that so that I could change filament to a different color after the mesh.

For the mesh settings in PrusaSlicer:
* Extrusion Width > Infill: 0.50
* Infill > Fill Angle: 0
* Infill > Fill Density: 20%
* Infill > Fill Pattern: Honeycomb
* Bottom & Top Solid Layers: 0
* Perimeters: 0

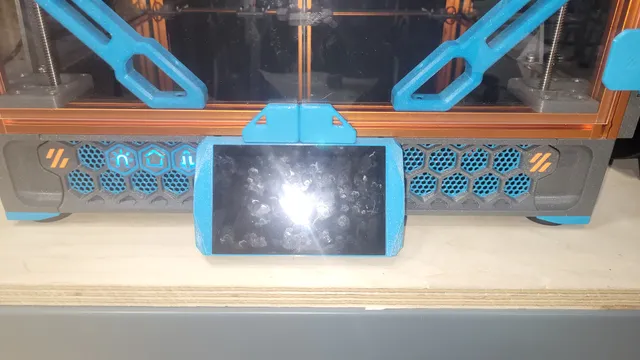

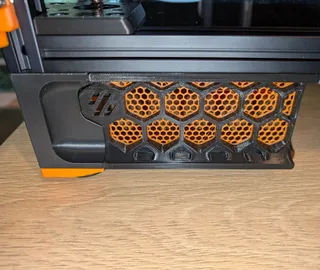

Image preview
Image preview

Thanks for the work saved me a ton of time.

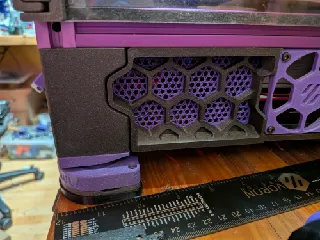

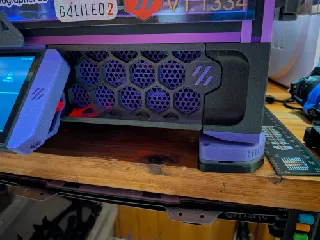

Image preview

Where is the keystone panel?

@Zilerd sorry i miss it, but it´s fixed and you can download it.
