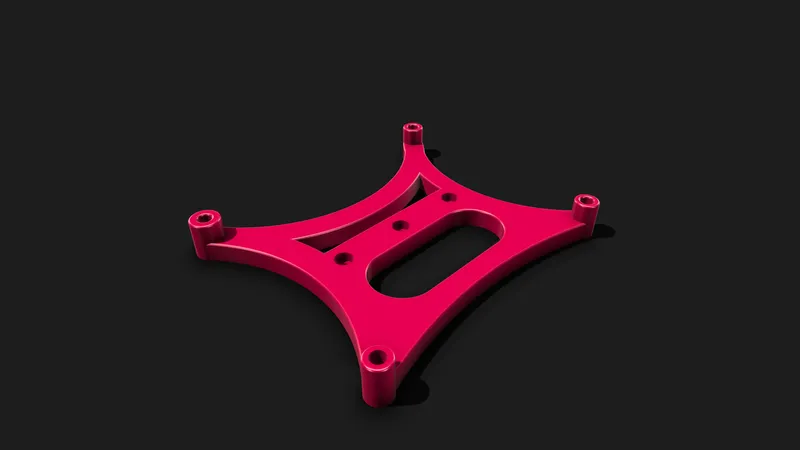

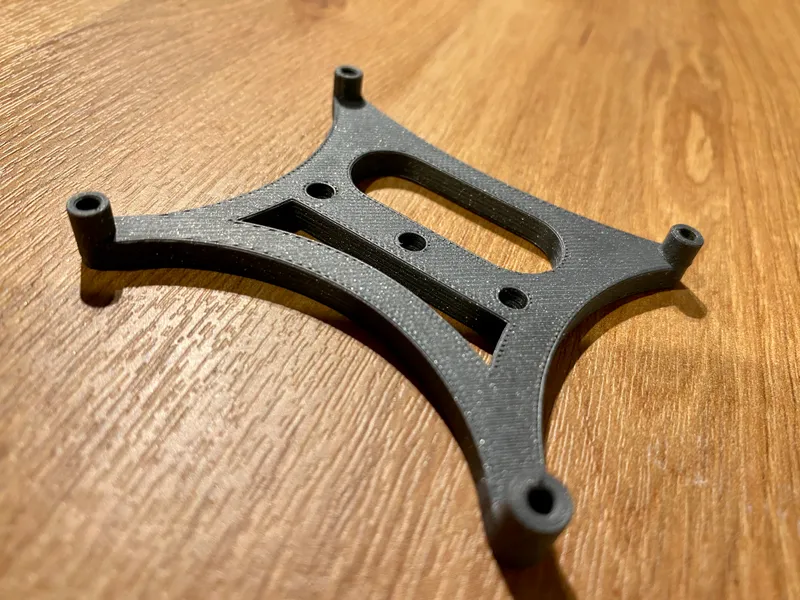

Raspberry Pi4 B+ (and Pi3 B+) mounting bracket

Bracket is designed to be used with 33mm DIN rail clips and mounting on DIN rail.
Can fit other mounting styles as well.

Print settings

These are the recommended settings.

Layer height: 0.2mm
Extrusion width: 0.4mm, forced
Infill pecentage: 40%
Infill type: grid, gyroid, honeycomb, triangle, or cubic
Wall count (perimeters): 4, only 1 perimeter for outer walls can be used for better looking.
Solid top/bottom layers: 5
Supports: None (no need)
