Parametric Mixer Drill Attachment

Parametric mixer attachment like comercial paint/drywall mud mixers that attach to a drill (any spin-a-ma-bob thingy)
375
1281
7
4360
updated January 15, 2023

Description

PDF

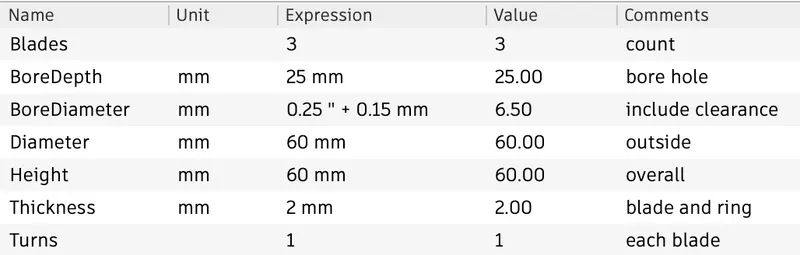

I was inspired by a recent model upload to create a parametric paint mixer. This model with associated Fusion 360 CAD file turned out really well. You can customize the width, height, blade thickness, bore hole diameter, bore hole length, number of blades and number of turns each blade makes.

The supplied pre-generated mesh models are for a ¼" dowel, I use bit of painter's tape in the end for a tight fix or epoxy.

Update: added a pre-generated LARGE size 120mm diameter, 150mm tall

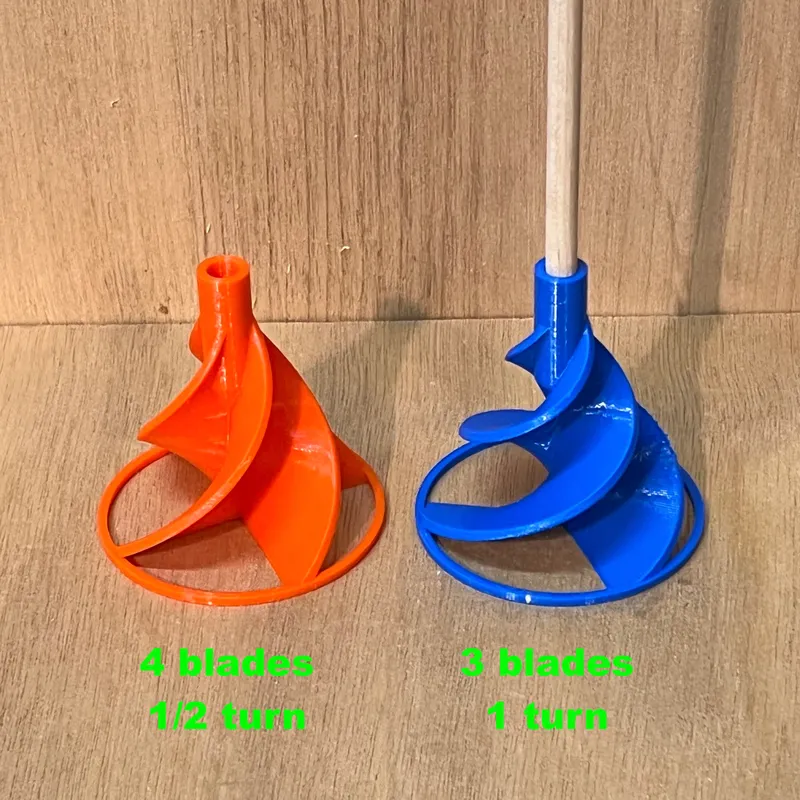

Here are two different designs I generated and printed, the blue one is the default if you use the CAD file.

Attached to a ¼" dowel, turning:

Demo (water):

Inspiration: https://www.printables.com/model/363966-mixer
