Eyeglasses Holder with compliant mechanism clip
Holds the glasses firmly in place
In the contest Eyeglass Holders
35
91
1
560
updated
January 1, 2023
Description
PDFFor use on desks and cupboards. The clip is bi-stable; ie. it will remain stable in open or closed position. Dimensions approx. H 83mm (3.3") W 63mm (2.5") D 56mm (2.2")
| Changelog | ||
|---|---|---|
| 2023-01-01 | v2 | design improvements |
| 2022-12-31 | v1 | initial public release |
Production
No supports needed; has to be printed with parameters provided in the 3mf file. Consists of two parts: the body and the ring clip.
Assembly

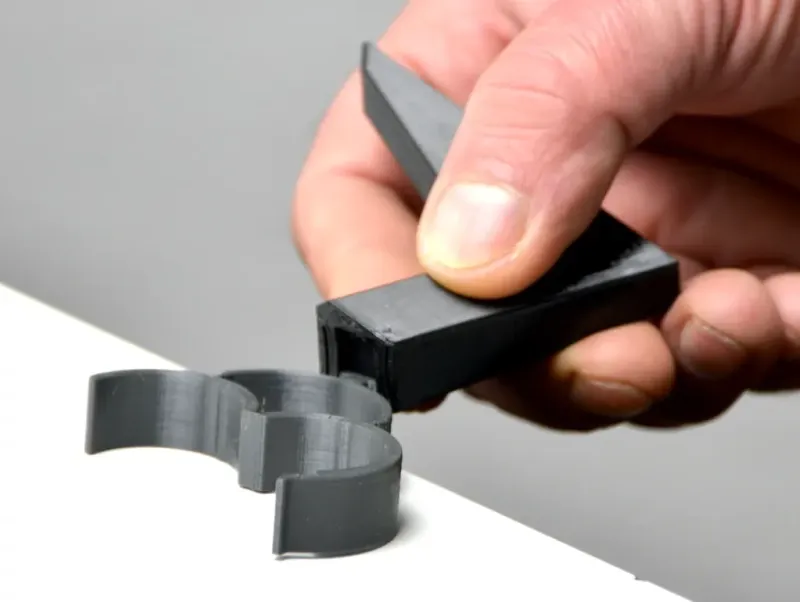

Assemble by pushing the clip into the body's guide.
You may use the edge of a table top to support inserting the clip in the guide.
Should the dimensions of your glasses need another clip size, here is some choice:
All Guide_1 clips will fit the Eyeglasses Holder.
