Microphone stand extension

This model was design to obtain a better placement of the microphone for a kick drum.

In the printing process, you must add the m6 nut (see below) when the printing makes a pause.

Additional hardware:

Once all the parts printed, you will need :

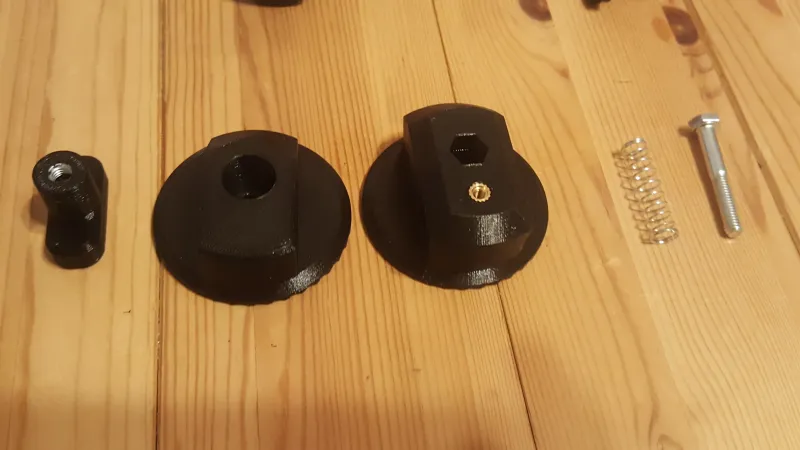

• some hardware : one M4x14 screw with machine socket head, one M6x40 bolt, one M6 nut, one spring (8mm diameter, 35 mm long) and one M4 insert for 3d printing.
• approx 25cm of a 14mm steel tube (standard for microphone stands)

Instructions

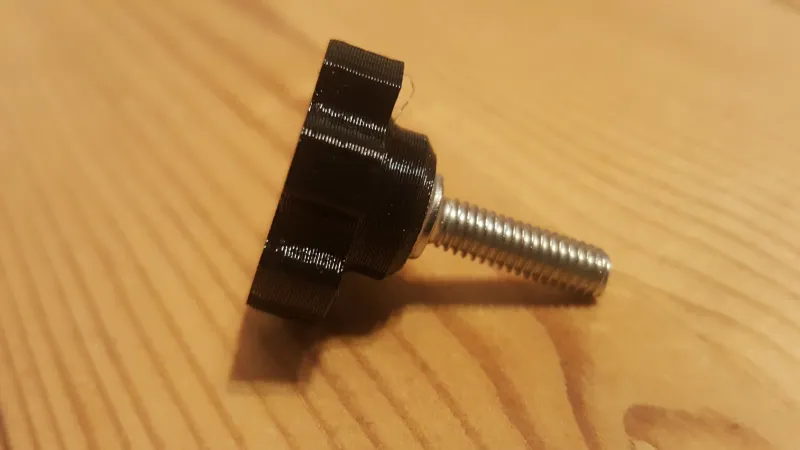

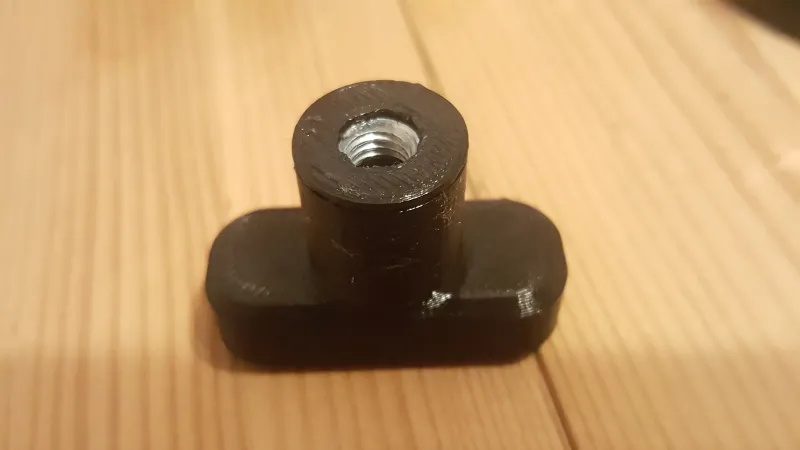

• put the screw and plastic part called “fix_perche”

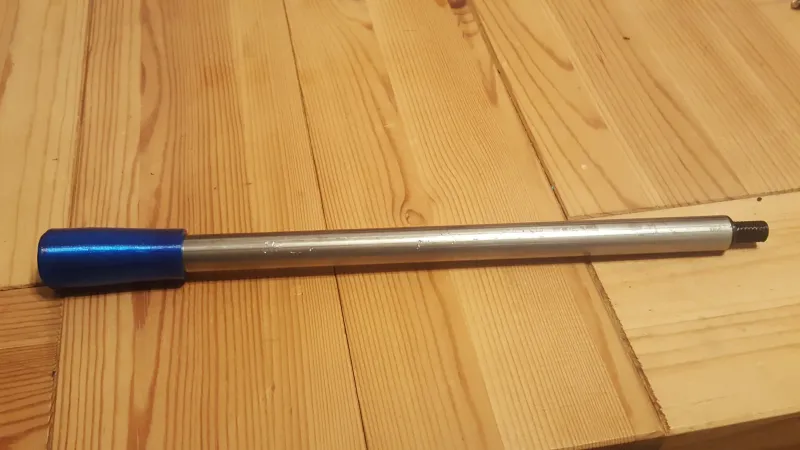

• Assemble the arm: put the flex part (in blue) and glue the thread

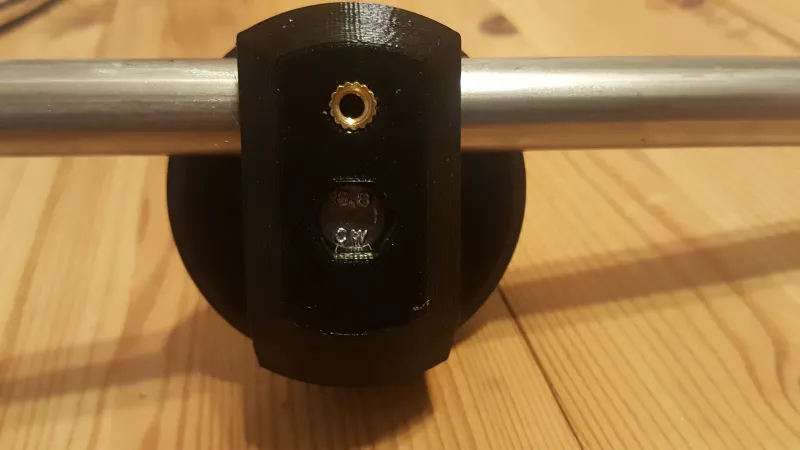

• put the insert with a soldering iron (not too deep !)

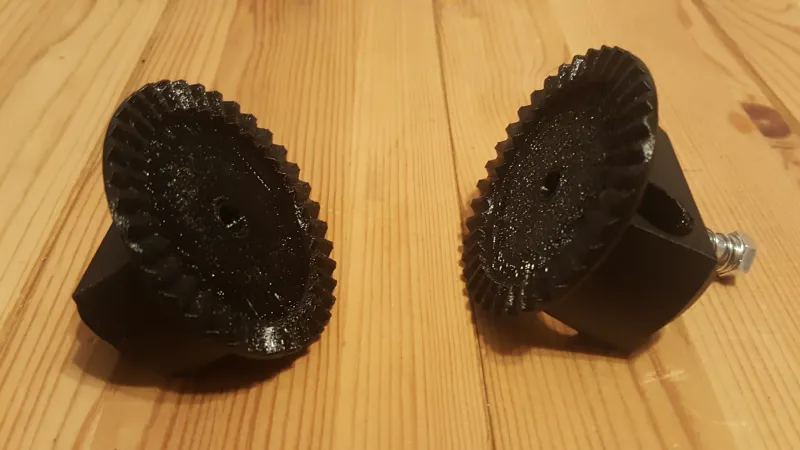

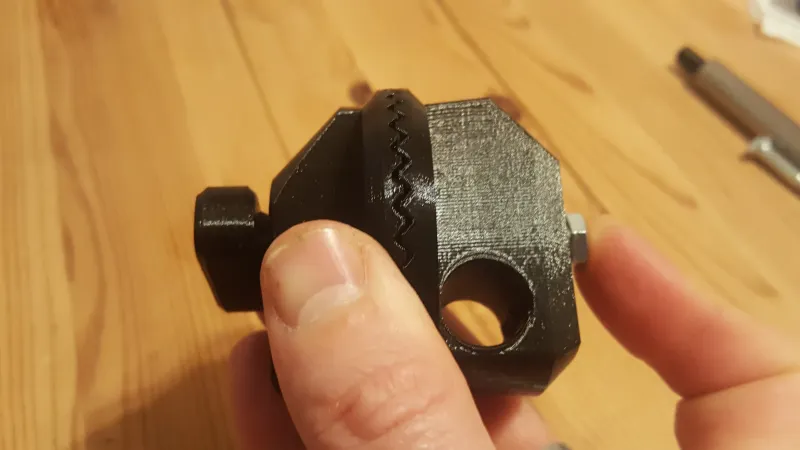

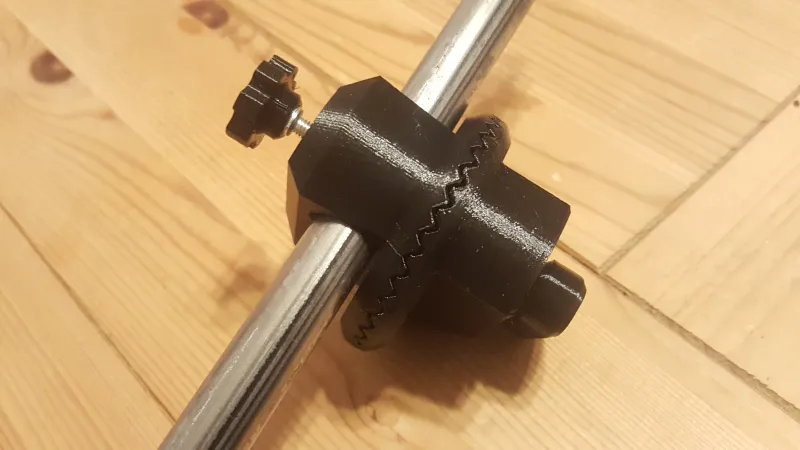

• assemble the attach

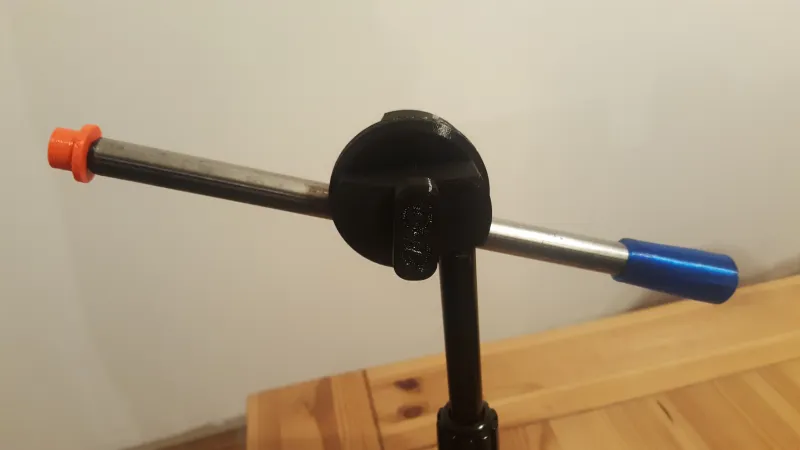

• assemble everything

Note : you can get the orange part here → Microphone adapter

Enjoy !
