SC1 Key/Pin Sleeve

Simple 2 part sleeve to hold key pins and a 5 or 6 pin SC1 key.
7
39
0
323
updated December 29, 2022

Description

PDF

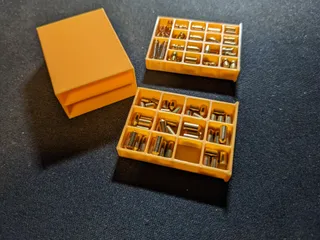

This was inspired by the keys in the Sparrows Reload kit.  They came in bags with the correct key pins but I thought it would be handy to have a compact way to hold the key pins with the key in a way that also lets you see that you have the correct ones in the right order.  This also makes the kit more organized.  There is also a small orange organizer for the security pins shown in one picture that can be found here: https://www.printables.com/model/352374-matchbox-style-organizer

The outer sleeve should be printed upright on the angled end and the inner sleeve should be printed with the angled end up.  Support should not be used.

The current design is optimized for 0.4mm nozzle diameter with 2 walls.  There is a wall setting in the OpenSCAD file you can adjust if you want to have a different wall thickness.
