Camera Adapter for LG 75 SK 8100 TV – Govee smart backlight etc. (FreeCAD, STEP, …)

Like others, the camera of the Govee smart backlight is supposed to sit on top ot the TV. The frame is to thin to provide a firm halt. So I designed this camera adapter that also lets the LED strip go around smoothly.

Printed in black Prusament PETG, 0.4 mm nozzle, 0.3 mm layer height, lightning infill, no supports.

Assembly

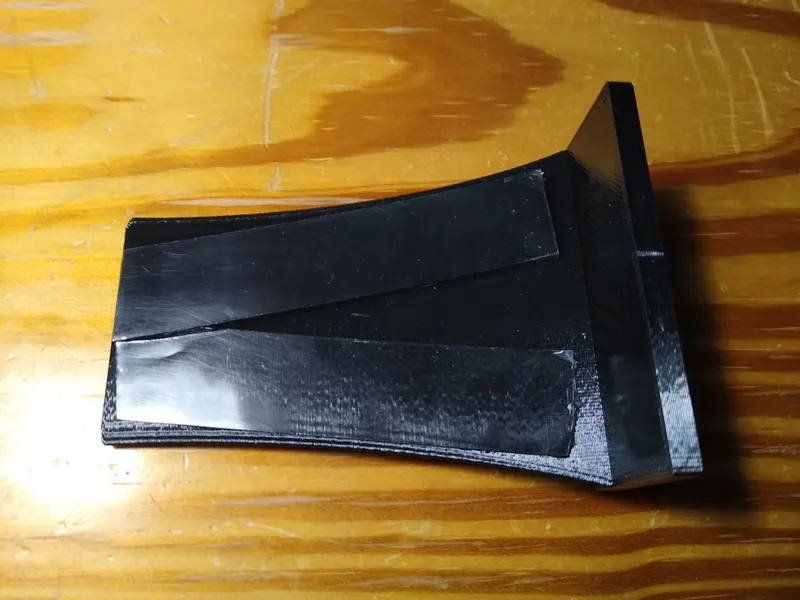

1. Put some double sided tape on the inner side of the adapter. Also put some tape on the larger inner surface of the "Anschlag seitlich" angle brackets. I use "nano" tape for this, because it can also be easily removed without any residue.


2. Display "center-alignment_fine.png" (from png_images.zip) fullscreen on your TV. Align the little notch on the front of the adapter with the center line. Stick the brackets to the right and left of the adapter.


3. Now stick the adapter onto the back side of your TV. The two brackets will guide it into position perfectly.

4. Remove the brackets, install camera and LED strips. (Yes, my photos were shot before finally installing the LED. I wanted to make sure the adapter does not come off after a few days, so I'm installing and testing the whole thing step by step.)

5. For calibration of the camera you can use "camera-calibration.png" instead of the foam cubes that come with the backlight.
