Starlock adapter with metal insert

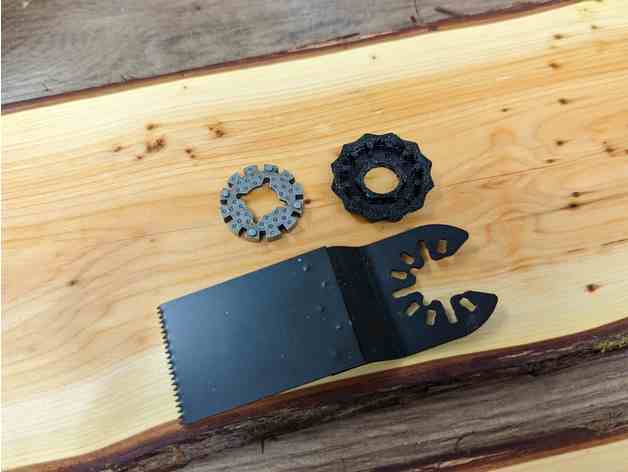

This is a remix of JeEk's starlock adapter with a metal insert that will make the cheap saw blades fit Starlock tools.

I rotated the metal insert so blades can be placed straight in line with the tool, and I upscaled the adapter so it will sit more tightly in the tool so it won't generate heat due to friction.

I guess the adaptor will fit in any star lock tool with a screw or center pin. I have a Bosch GOP12V-28. probably wont fit snap in attachment.

The insert can be found on multiple sites and they all look to be the same.

The insert fits quite tightly and won't fall off and be lost when it's fixed in the adapter.

The adapter needs to fit tightly or else it generates a lot pf heat and friction between the adapter and the tool - if it's not very tight, scale the adapter to fit tightly.

remix of: https://www.thingiverse.com/thing:5616637

Print Settings

Supports:

No

Resolution:

0.15

Filament: why would this matter? PETG/ABS only pink

Notes:

5 perimeters
