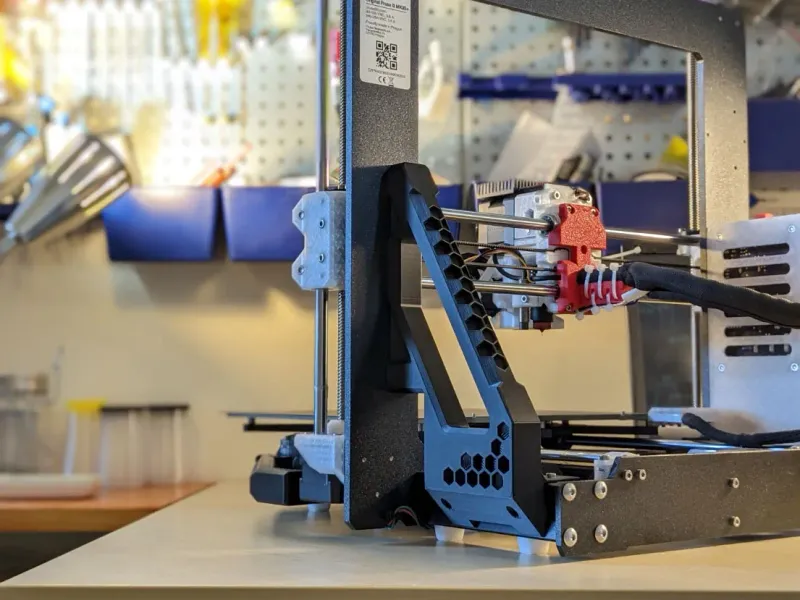

Prusa MK3 Side Handles

Let’s changing impression! This is a visual upgrade that attaches to the side 3030 frames.

The installation does not improve the performance of the printer, it is an upgrade for appearance only :D

Required other than printed parts:

• 4x M5x10mm screws
• 4x M5x25mm screws
• 4x M5 hex nuts
• 4x M5 T-nuts

Print settings:

• Filament: Prusament PETG Matte Black
• Layer height: 0.26mm
• Supports: no
• Perimeters: 2

Assembly:

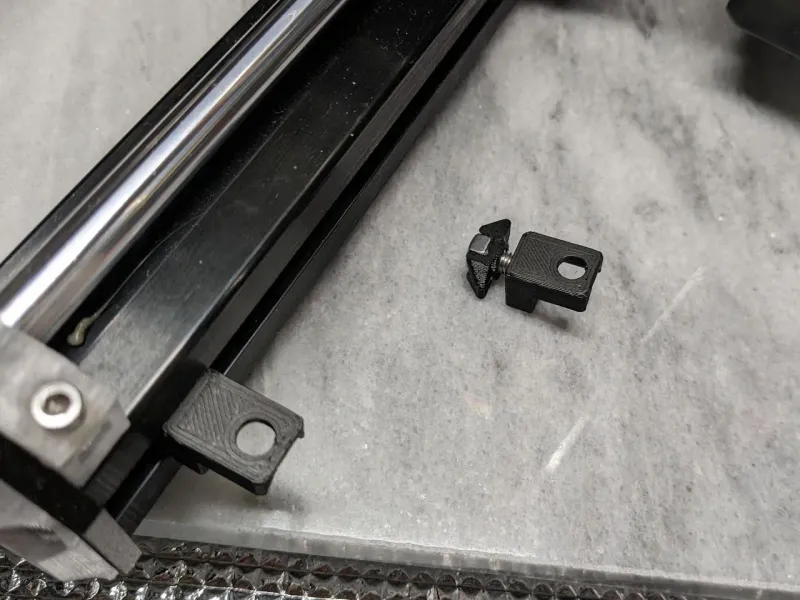

1. Fix the mounting parts to the 3030 frame, two on each side, with M5x10mm screws to secure the T-nuts.

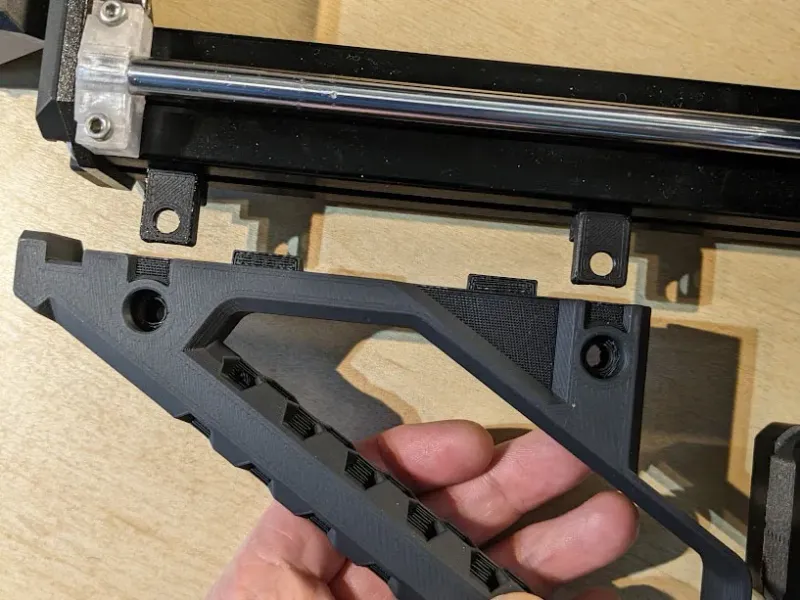

2.  Align the front plate with the notch in the handle and secure with M5x 25mm screws and M5 nuts.
