dice set

(English language)

Dice set include d4, d6, d8, d10, d12, d20, d24, and d30 (variety among four-sided dice, six-sided dice, eight-sided dice, eight-sided dice, twelve-sided dice, twenty-sided dice, twenty-four-sided dice, thirty-sided dice).

Included dice have a standard size and shape as regular dice.

Dice included are created in their well-known shapes and in some variations so check if you download the correct shape (for example bipyramidal d10 die after rolling won't give one number on the top but two that some games prefer, so check what variant you need).

If you're looking for a d2 dice, check my two-sided d2 dice which have shapes based on cylinders and thus are not included in this dice set. In the dice set, you will find many variants of d4 but I've made also a two-sided d4 dice remix of my two-sided d2 dice which is also based on cylinders and thus is also made to separate subproject.

If you're looking for a d3 dice, check my three-sided d3 dice subproject!

Standardization:

• font: Arial 12 (4.5 mm) (based on the link, by purchasing Windows Operating System I have a right to even sell objects with this font, “as long as it's not the font itself”)
• ‘1’ (number one) is replaced with ‘I’ (capital letter from ‘i’)
  • comment to standard: ‘1’ can be easily confused with ‘7’ in some fonts
• if numbers 6 (six) and 9 (nine) occur ‘6’ (number six) is replaced with ‘6.’ (a dot following number six) and  ‘9’ (number nine) is replaced with ‘9.’ (a dot following the number six)
  • comment to standard: ‘6’ can be easily confused with ‘9’
• numbers are extruded by -0.404 mm ("Original Prusa print profiles always use 0.20 mm as the first layer height." (based on the link) which will make numbers at minimum 2 layers)
• dice main edges are rounded by 1 mm

Standard notation	Shape	Image	Filename	height in mm
d4 (after rolling the number on the bottom is the result - based on the link)	tetrahedron		d4 tetrahedron, numbers on edges.stl	18
d4 (after rolling the number on the top is the result - based on the link)	tetrahedron		d4 tetrahedron, numbers in corners.stl	18
d4 (after rolling the number on the top is the result)	tetragonal disphenoid		d4 tetragonal disphenoid.stl	22
d4 (after rolling the number on the top is the result)	truncated tetrahedron		d4 truncated tetrahedron.stl	20
d4 (after rolling the number on the bottom is the result similar to rolling regular tetrahedron -  link)	truncated tetrahedron		d4 truncated tetrahedron, numbers on edges.stl	20
d4 (after rolling the number on the top is the result  similar to rolling regular tetrahedron -  link)	truncated tetrahedron		d4 truncated tetrahedron, numbers in corners.stl	20
d6	cube		d6 cube.stl	14
d6	trigonal bipyramid, 3-gonal bipyramid, hexahedron		d6 trigonal bipyramid.stl	22
d6	trigonal trapezohedron, 3-gonal trapezohedron		d6 trigonal trapezohedron.stl	22
d8	octahedron, 4-gonal bipyramid		d8 octahedron.stl	23
d8	tetragonal trapezohedron,  4-agonal trapezohedron		d8 trigonal trapezohedron.stl	23
d10 (die with numbers 1, 2, 3, …, 10)	pentagonal trapezohedron, 5-gonal trapezohedron		d10 pentagonal trapezohedron 1-10.stl	22

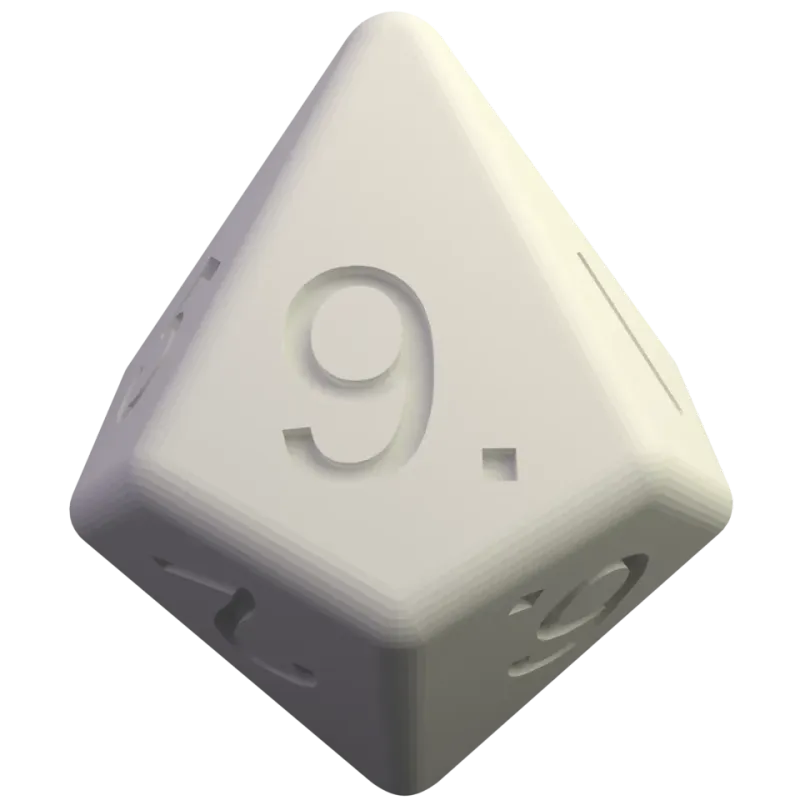

d10 (die with numbers 0, 1, 2, …, 9)	pentagonal trapezohedron, 5-gonal trapezohedron		d10 pentagonal trapezohedron 0-9.stl	22
d100, d% (die with numbers 00, 10, 20, …, 90 to create a percentile die - how to read percentile die: link)	pentagonal trapezohedron, 5-gonal trapezohedron		d10 pentagonal trapezohedron 00-90.stl	22
d10 (die with numbers 1, 2, 3, …, 10)	pentagonal bipyramid, 5-gonal bipyramid		d10 pentagonal bipyramid 0-9.stl	23
d12	regular dodecahedron		d12 regular dodecahedron.stl	17
d12	rhombic dodecahedron		d12 rhombic dodecahedron.stl	20
d12	hexagonal trapezohedron, 6-gonal trapezohedron		d12 rhombic dodecahedron.stl	22
d12	hexagonal bipyramid, 6-gonal bipyramid		d12 hexagonal bipyramid.stl	22
d12	truncated dodecahedron		d12 truncated dodecahedron.stl	18
d20	regular icosahedron, icosahedron		d20 icosahedron.stl	22
d20	decagonal trapezohedron, 10-gonal trapezohedron		d20 decagonal trapezohedron.stl	46
d20	decagonal bipyramid, 10-gonal bipyramid		d20 decagonal bipyramid.stl	30
d24	triakis octahedron		d24 Triakis octahedron.stl	25
d30	rhombic Triacontahedron		d30 Rhombic Triacontahedron.stl	25

Heigh of the dice is standardized based on (WEIGHTS & MEASUREMENTS, DGD CATALOGUE).

Measurement of dice height does not include round edges!

What types of dice are used in the game you're playing?

dnd (d&d, Dungeons & Dragons) and 13th Age uses:

based accordingly on the link and  link:

• d20 (icosahedron)
• d12 (dodecahedron)
• d10 (pentagonal trapezohedron)
• d8 (tetragonal trapezohedron)
• d6 (cube)
• d4 (tetrahedron)

Shadow of The Demon Lord uses:

based on the link:

• d20 (icosahedron)
• 6d6 (six times d6 cube)

Updates

25.12.2022

Inspired by number placement on regular d4 (tetrahedron) and truncated tetrahedron shape two additional variants of the truncated tetrahedron were added:

• d4 truncated tetrahedron, numbers on edges.stl
• d4 truncated tetrahedron, numbers in corners.stl

26.12.2022

d4 tetragonal disphenoid die was added:

• d4 tetragonal disphenoid.stl

31.12.2022

d24 triakis octahedron die was added:

• d24 Triakis octahedron.stl

d30 rhombic Triacontahedron die was added:

• d30 Rhombic Triacontahedron.stl

24.12.2023

blank (only primitive shapes without a text) dice have been added:

• (blank) d20 icosahedron
• (blank) d12 regular dodecahedron

23.02.2024

fix on “d12 rhombic dodecahedron”: faces (1,2,3,14,5,6,7,8,9,10,11,12) → (1,2,3,4,5,6,7,8,9,10,11,12)

P.S.

I know that in eg d4 ‘d’ stands for “dice” and by using “d4 dice” I'm making a mistake, but that mistake helps web search engines find my page if someone is looking for d4 so I'll keep that mistake.
