Prusa MK3S low noise fan shroud (45° angle)

Changed the angle to 45° so the Shroud would not hit the Print bed on the MK3S Remix of…
23
212
8
2300
updated December 25, 2022

Makes

Comments

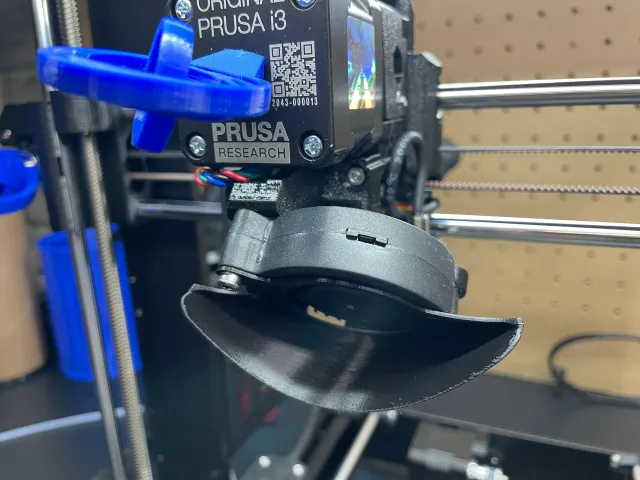

I put it on my MK3.5S and I'm glad. Better ABS overhangs and bridges. No increase in noise.

Could use a bit more volume at the bottom edge where flat and cone meet, for increased stiffness, especially important when peeling out of the buildplate. Worked all the same so that's not a problem, just an improvement suggestion.

It's not pretty and it obscures the view. But that's not it's role. I would consider docking at most half a star for it.

needs improvements , bends when installed and holes for screws are to big... But nice work! so let's test : https://www.printables.com/fr/model/38001-prusa-mk3s-improved-45-degree-fan-shroud
