Car smart phone holder for singles

Here is the ultimate smart phone holder for you. Exactly tailored to yout device.

Simply open the attached f3d file with Fusion 360, enter the length, width and height of your device and you will get an automatically generated model to print.

You can attach the holder to a suitable surface in the car using double-sided adhesive tape. My holder has been reliably fixed in the car this way for weeks.

BUT: Before you print this holder, consider whether this one is more suitable for you: Car smart phone holder for couples

The procedure in detail

Open the f3d file with Fusion 360
Go to: File → Open... → Open from my computer

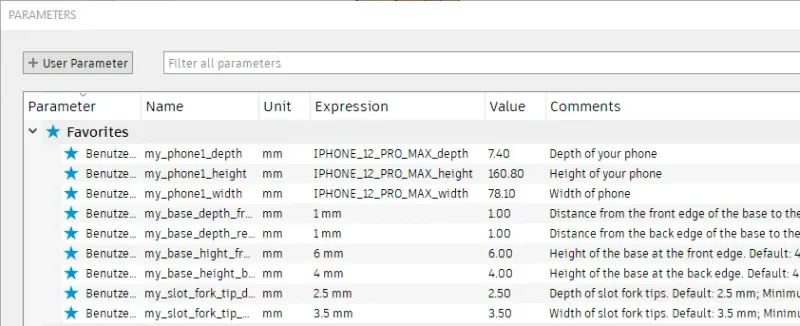

Go to: Modify → Change Parameters
Modify only the stared ones (don't alternate the others unless you know what you are doing.

The first parameters are the depth, height and width of your device.
Tip if you have an iPhone: The dimensions of all iPhones from iPhone 6 onwards are already stored. Simply enter your iPhone model.

You can further detail the model with some more parameters. For example, you can adjust the height of the base at the front and back in order to stick the holder on a sloping surface of your car.

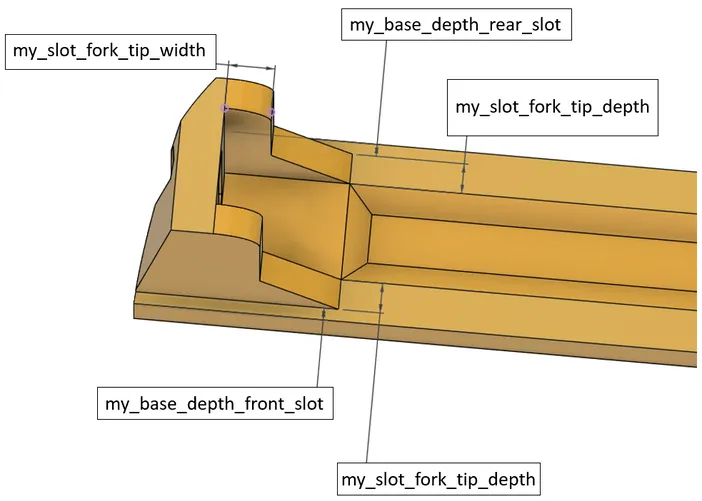

The following pictures show the meaning of these parameters:

After you have entered the parameters, export the model as a 3mf file to open it later in the slicer:
Go to: File → Export

PRINT INFORMATION

Due to high summer temperatures in the car, you should not use PLA but PETG etc.

I printed the holder with the following settings:
Layer height: 0.15 mm
Infill: 15%

I am looking forward to your Makes! :-)
