Overhang Test for Detailed prints

This is my new design to test your printers part cooling fan performance.

This model is designed for detailed prints, where the overhangs are small.

It test for 40, 30, 20 and 10° overhangs.

This is a quick print, takes about 35 mins.

Important: set the seam to an “inner” corner (aligned)!

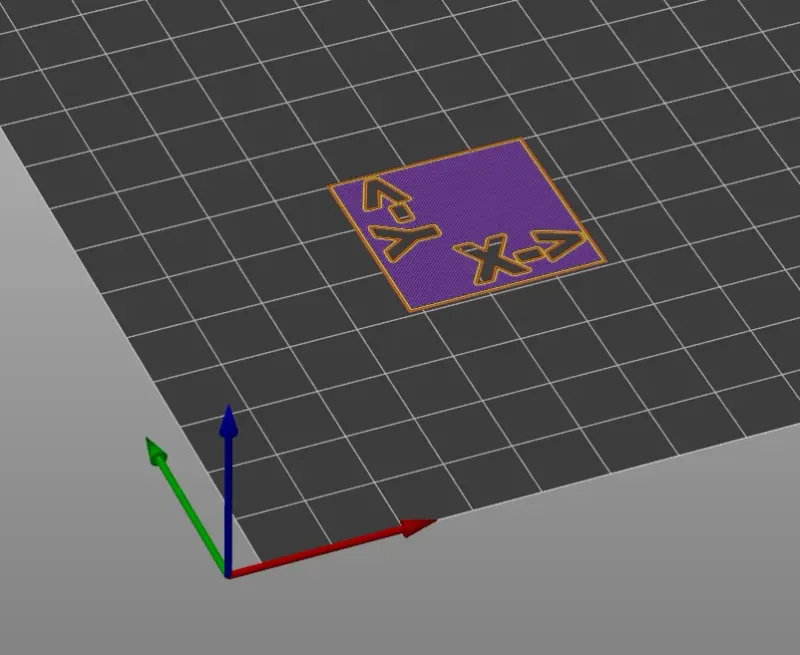

Pay attention to the text on the bottom side, when placing it on the printbed. It will help you identify the x and y directions later.

If you found it useful, give it a like!

Check out my other test model:

https://www.printables.com/model/342481-overhang-test-regular

Note: mine was printed on an Ender 3 Pro, with a Voron Stealthburner printhed.
