STEP Integration for Compliant Mechanism Clips

3D cavity to use in your own CAD projects to import an interface to guide_1; used by

the compliant mechanism Ring Clip Repository. There's also a list with application examples.

Usage

The STEP file represents a closed surface that can be subtracted from your 3d volume to create the original cavity that holds guide_1 items.

Keep the orange areas open in order for the guide to work.

There is some freedom in positioning; see the definition of lower and upper flush line in the main pictures; both are tested. The upper flush line gives an extra 0.2mm layer.

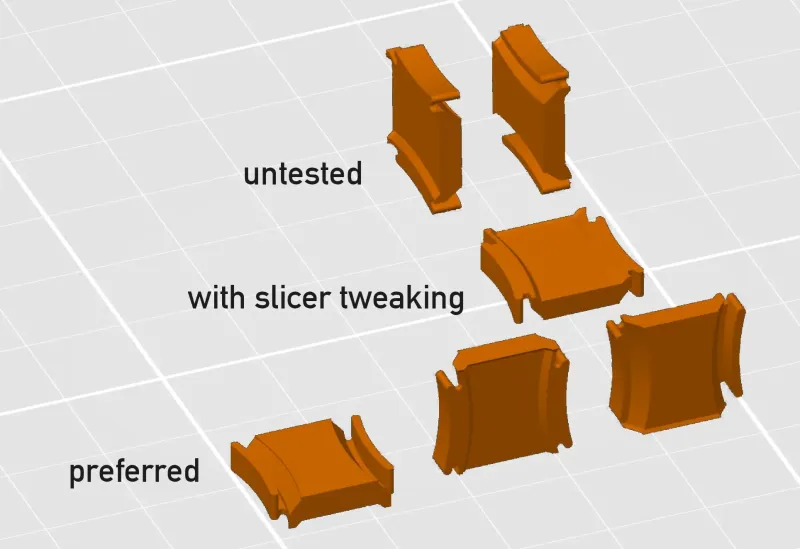

Orientation for FDM printing
