Honeycomb Wall Compliant Mechanism Clip Mount - cable, pen, etc HSW

Changelog

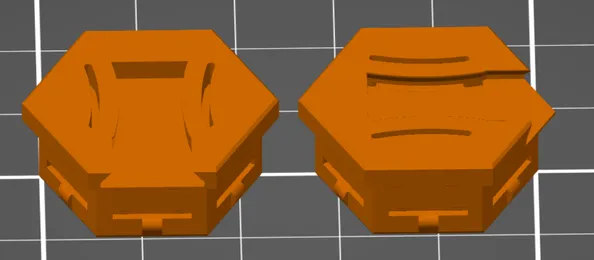

Honeycomb Wall Compliant Mechanism Clip Mount
2023-01-08	v1.2	Horizontal variant added
2022-12-11	v1.1	changed geometry and printing orientation for easy support removal and more reliable fit
2022-12-09	v1.0	initial public release

Mount for compliant mechanism clip, with plenty of sizes available. Good for attaching cables, pens, tools and many other things to your wall.

This is the clip mount, you will also need a clip from the Ring Clip Repository linked below.

Production

Use the parameters from the 3mf files, and adjust to your printer and material. Print needs support and thorough removal, which goes pretty well with PETG.

Assembly

Mount and clip are separate parts for

• optimized printing
• hidden screw heads
• easy clip replacement

Attach the mount to the wall. Press the compliant mechanism clip into the guide of the mount. On first assembly of the clip, it needs a good push; changing the clip later will be easier.

Different clip sizes

All sizes available in the Ring Clip Repository.

You might like

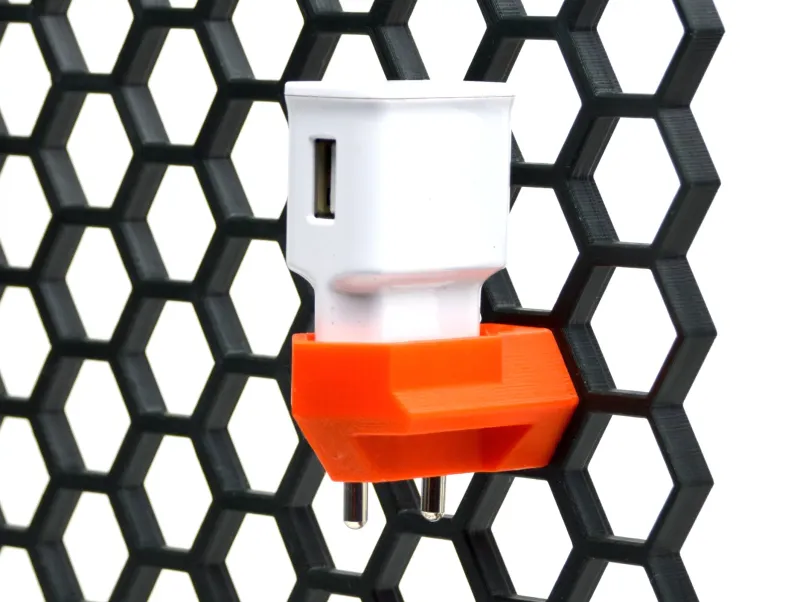

Cableclips and single compliant rings	Charger Mount
