Starting form the brillant idea of Yasir Bilgiç in https://www.printables.com/fr/model/297164-nozzle-storage-for-prusa-mini-base and since I didn’t need space to store so many nozzles, I modify it to store also some tools and parts for my MINI+

Design

The proposed design allows to store 12 nozzles from 0,25mm to 0,8mm (3 of each), the most often used tools (wrench, allen keys, etc…) and spare parts like PTFE tubes, fuses, etc…

It fits the y axis tray model from the Prusa MINI Base

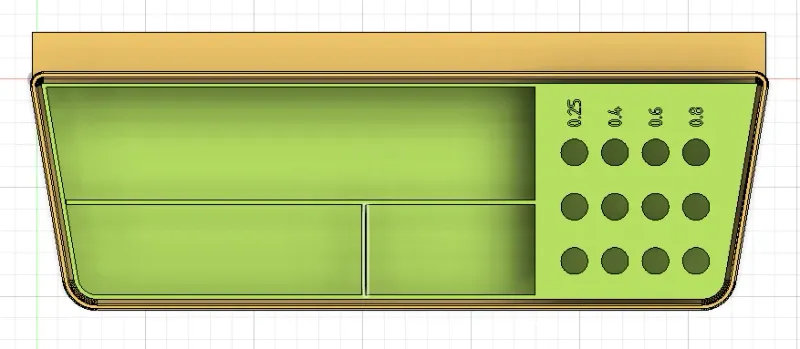

1st version (Above), the one I printed, was with too small letters and compartment a little bit small for the 10mm/8mm wrench received with my MINI+

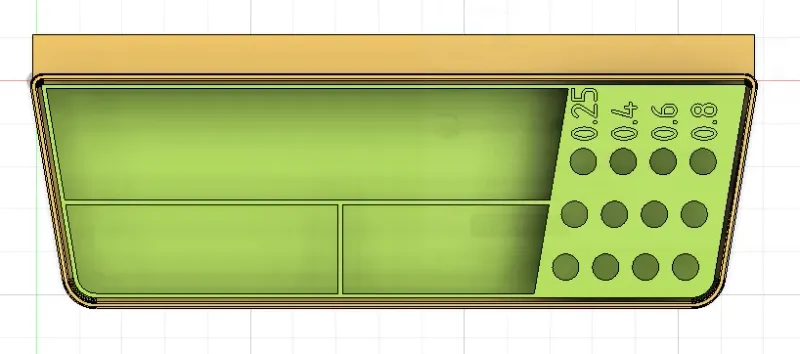

I changed the design to correct these 2 issues and propose you the 2nd version below where the storage space has been optimized. This is the one I'll print soon

Printing instructions

Nothing special here for slicing and printing

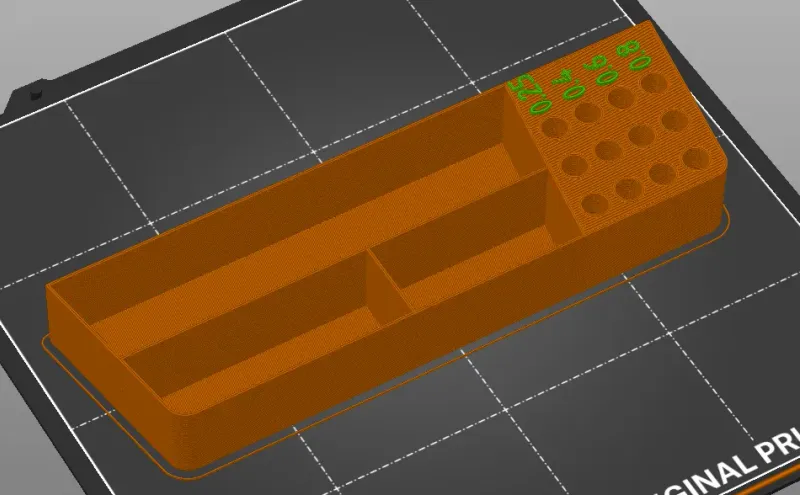

I choose 0.20mm layer height with standard PrusaSlicer parameters

Just don't forget to add color change (M600) instruction if you want to change filament color for letters as I did

Insert was printed in Prusament PETG Jet Black and letters with Prusament PETG Organe same color as Prusa MINI Base parts

On top of .stl and .3mf files, I uploaded Fusion 360 .f3d file so you can modify the design and adapt it to your needs

As usual, feedback and comments (and for sure "likes") will be always welcome. Feel free to post also nice pictures of your makes

You can also look at the other tools and accessories organizers I designed and 3D printed

Enjoy

If you like this model, take a look also at my other designs
