Vase Mode parametric gridfinity

BASIC INFORMATIONS

This part is meant to be printed in 2 halves (base → top) that are printed consecutively one on top of each other. Otherwise if you can't/won't bother to do this, the two parts can be glued together.

IMPORTANT: If you opted for printing  consecutively one on top of each other the two parts, THE TOP GCODE MUST BE OFFSETED BY THE BASE HEIGHT which should be 5.25 mm.

Recommended  slicer settings

Top

• Vase mode
• 2 bottom layer

Base

• 1 top layer
• ≤20% infill
• ≥ 2 walls

Offsetting the top body GCODE

During the creation of this project I stumbled on a bug:

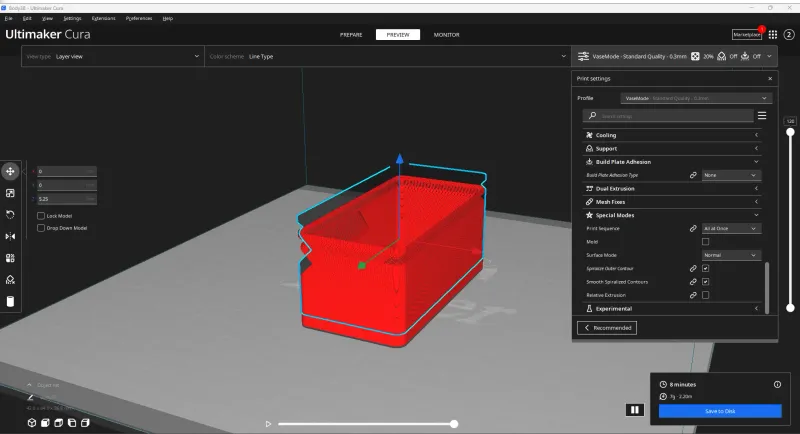

In CURA (I don't know if other slicers do the same) trying to offset an .stl sliced in vase mode doesn't work as expected:

FIX

For this reason I created a decent tool that can offset on a wanted axis a GCODE for an amount of millimeters.

Everything is explained better in the GitHub repository that I created, including the source code!

GCODE mover
