NAS Case for ODROID-HC4 (only for 2.5 disks)

Time Capsule alike sized case for harkenel's odroid-hc4 board and two 2,5'' ssd/hdd disks

supports only 2,5'' Disks (up to 20+/-5 mm height - like 4 or 5 TB models)

everything, except hdd_holders, can be printed without supports

Update 24.05.2022:

• added foot rivet stl
• update FreeCAD source file

Build up requrements:

• 6 m3x15 bolts and nuts for main body
• 8 original black screws for mounting motherboard and top hat
• 8 m3x5 bolts for mounting hdd/ssd

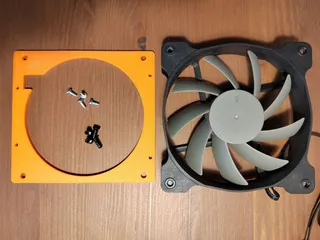

• 4 m3x15 bolts and nuts for mounting fan
• 4 m3x10 bolts and nuts for mounting pads (this optional, you can print it or apply pads without holders - on double sided ductape/scotch)

Build up video:

Print Settings

Printer Brand:

Creality

Printer:

Ender 3 Pro

Rafts:

Doesn't Matter

Supports:

Doesn't Matter

Resolution:

0.8

Infill:

90%

Filament:esun pla white/orangePost-Printing=============

How-to build

Category: DIY
