Print Sheet Holder – RepBox Side Mount – For Prusa MINI/+

A print sheet holder that mounts to the side of a RepBox and holds one each of the smooth, textured, and satin sheets.
5h 13m
4× print file
0.30 mm
0.20 mm
0.60 mm
0.40 mm
151.00 g
3
10
0
205
updated November 8, 2022

Description

PDF

A companion to the MK3 RepBox side-mounted print sheet holder, for the MINI/MINI+ print sheets. There are two versions: one for MMU printing (pictured) and one with debossed sheet label text for single material printing.

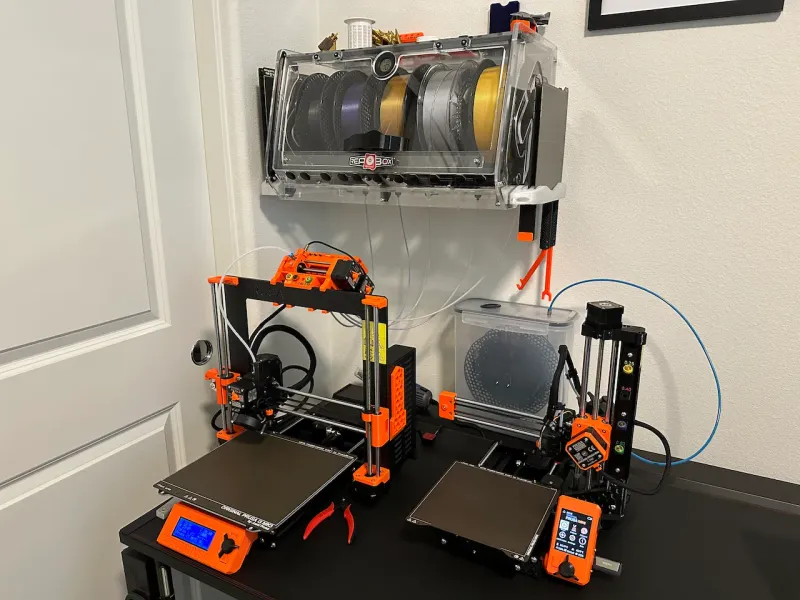

This print sheet holder cannot be printed on the MINI/+ (too large) and is designed specifically for setups similar to the one in the photos (and pictured below), which incorporates both a MK3 and a MINI.

Optional magnets can be embedded in the print which can then be used to store things (like the RepWinder-RepBox Loading Tool) on the bottom of the print sheet holder (if your RepBox is mounted to a wall).

For those of you who like this design, but only own a MINI/+ and are frustrated by the bolded statement above, I do plan to design a variation of this print sheet holder which will be printable on the MINI/+; similar to this design. Stay tuned…



Parts & Hardware:

  • 1x Print Sheet Holder
  • 1x RepBox-2PCS-TFBracket_mod (single print/file, two parts)
  • 2x M4x25mm screw
  • 2x M4 nut

You should probably also have a RepBox to mount it to.



Printing Recommendations:

Print Sheet Holder
  • Use a 0.6mm nozzle if you have one; cuts the print time by nearly 50%.
  • 0.3mm layer height if you're using a 0.6mm nozzle; 0.2mm layer height with a 0.4mm nozzle.
  • 3 perimeters.
  • 15% infill with the pattern of your choice is sufficient; I used cubic.
  • All provided G-code files include a print pause for the optional magnets. If you are creating your own G-code and would like to use the magnets, don't forget to include the print pause.
  • All of the provided .3mf files include PrusaSlicer settings and a print pause for the magnets; remove the print pause if you are not using magnets.
Modified TFBrackets
  • Use a 0.4mm nozzle for better detail around the nut pocket opening.
  • 0.15-0.2mm layer height.
  • 15% infill with the pattern of your choice is sufficient (there is very little infill in these anyway due to the small size and number of holes passing through them).



Assembly:

Assembly is the same as described here. Yes, I'm being lazy… I know.
