Voron 0.1 Foldable Spool Holder

Protusion from original Voron 0 spool holder is getting in the way?
Too much work to remove it and leave 1 nut hanging loose inside the frame?

Then you'll need this Voron 0 Foldable Spool Holder!

Features

• Keeping the dimension & look of original spool holder as much as possible.
  (This means you can re-use the PTFE tube from the original spool holder)

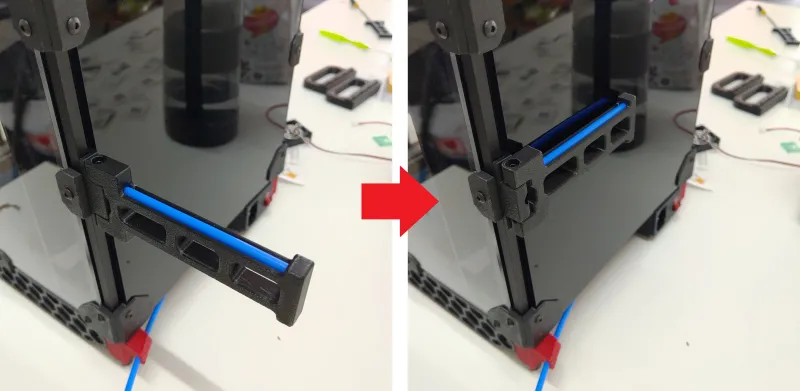

• Foldable, reducing the overall dimension of Voron 0 for easy storing / traveling.
• Compatible with any acrylic panel thickness less than 3 mm.
• Easy 2-part assembly.

Assembly Instruction

Print Instruction:

• Support (Touching BuildPlate) may be required for “Connector_V0”.
  No support required for “Holder_V0”.
• Recommended to print in default orientation.
• Recommended print setting:
  • ABS / PETG
  • 40% Infill
  • Wall Count: 3
  • Top / Bottom Layer: Minimum 4

Parts Required:

• M3 x 35 SHCS / BHCS Screw x 1
• M3 x 10 SHCS / BHCS Screw x 1
• PTFE Tube x 2 (tubes from original spool holder is usable)
• [Printed Part] Connector_V0 x 1
• [Printed Part] Holder_V0 x 1

Assembly:

• Remove the original spool holder. You can keep the original M3 x 12 screw, it will not be used in this assembly.
• Secure the “Connector_V0” onto the frame using M3 x 10.
  Note: Make sure that the fillet (rounded edge) is facing the acrylic!

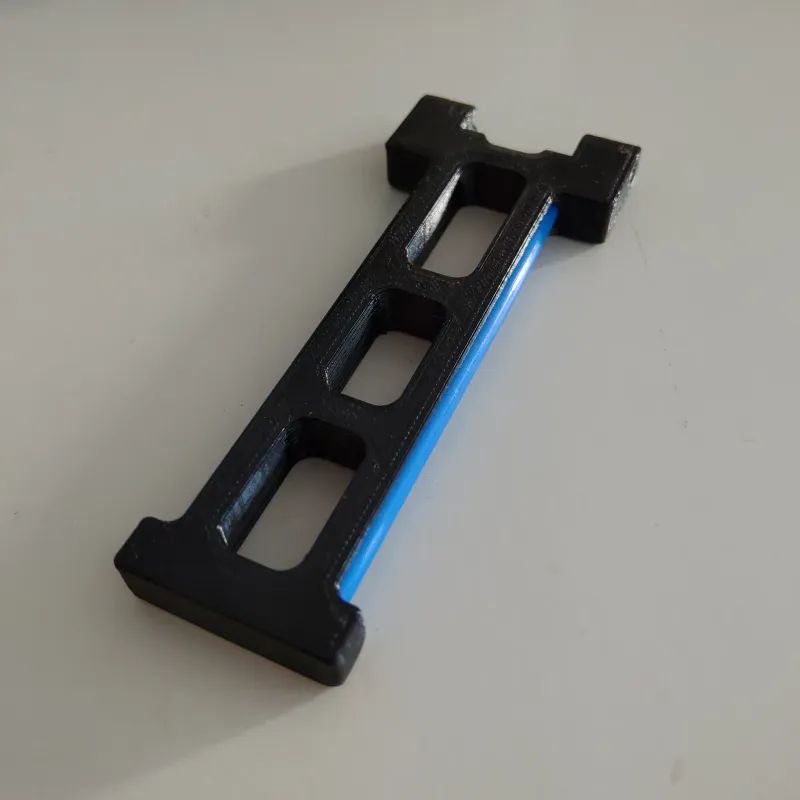

• Insert PTFE tube x2 into “Holder_V0”.

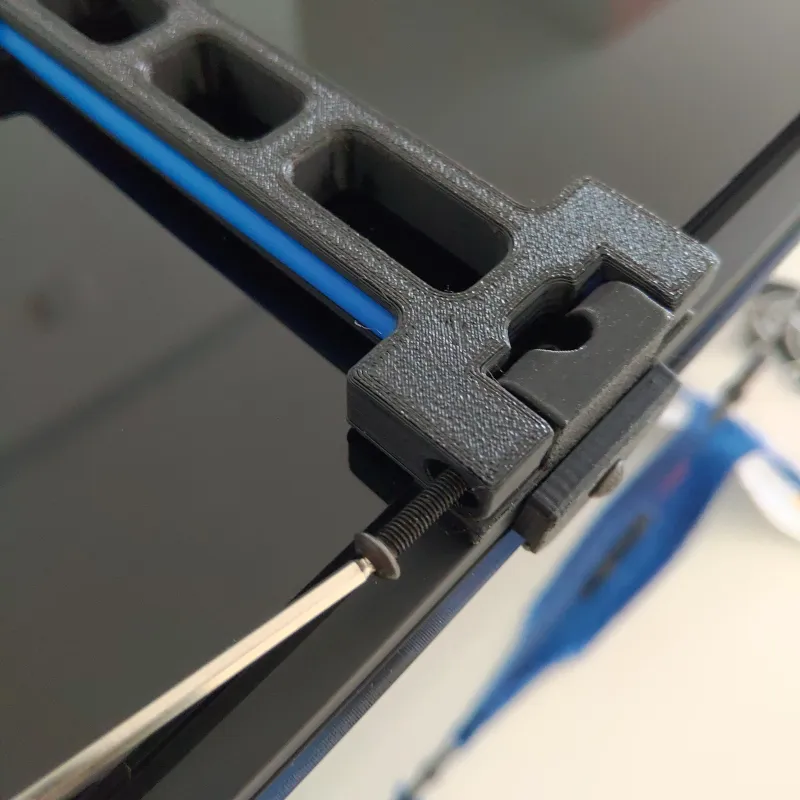

• Place “Holder_V0” towards the “Connector_V0”. Then, use M3 x 35 as a shaft to connect the 2 parts. Do not overtighten the screw!
  Note: Make sure the fillet (rounded edge) of “Holder_V0” is facing acrylic too.
  Note: Make sure the countersunk on “Holder_V0” is facing upwards.

• Finally, tighten the M3 x 35 screw slightly until the folding operation of the spool holder will hold itself by slight friction (so it won't swing free and slaps around when carrying you printer!)
  Note: Seriously, don't overtighten the screw. It may not able to fold.
• Enjoy!

Note: Made to support Voron 0.1, however should be able to support voron 0.2 as well.
