IN DEVELOPMENT

Fully 3D printed profile gauge

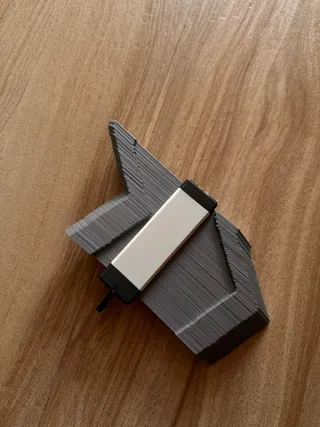

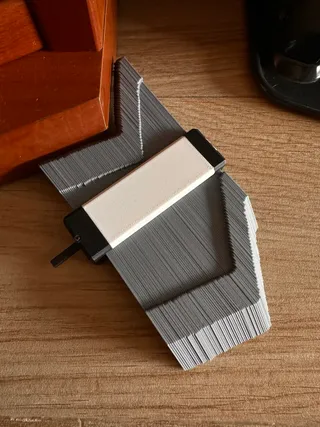

The picture shows 92 panes for a measured width of 82mm. Each pane is modelled at 0.9mm, intended to be printed at 0.3mm in layer height.

Print instructions

IN DEVELOPMENT

Layer height for panes are intended to be set at 0.3mm as they are modelled at 0.9mm.

Other parts have no specifics as yet.
