Case for Miniware ES15
Description
PDFNEWS!
26/07/2023

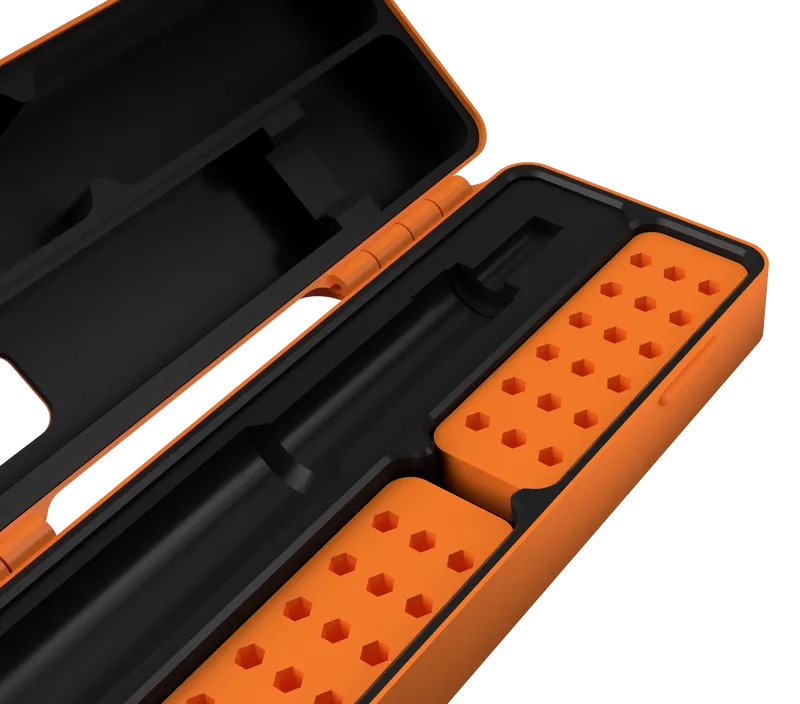

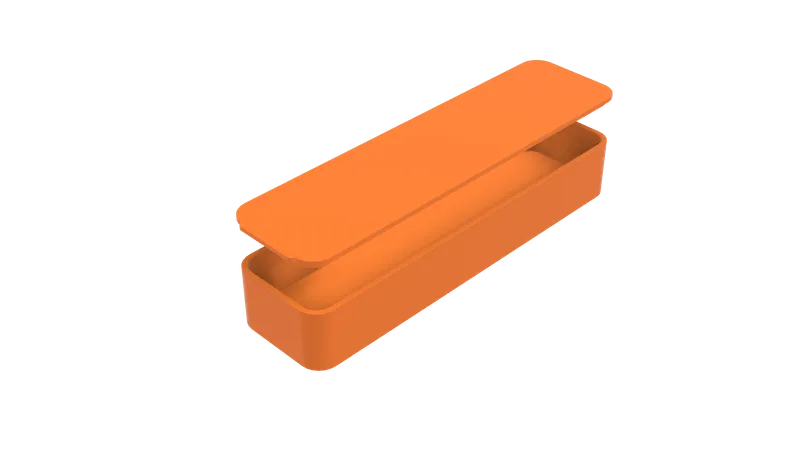

Added a new bits-holder for the vane location and a lid for the vane.
Talking of bits-holder…

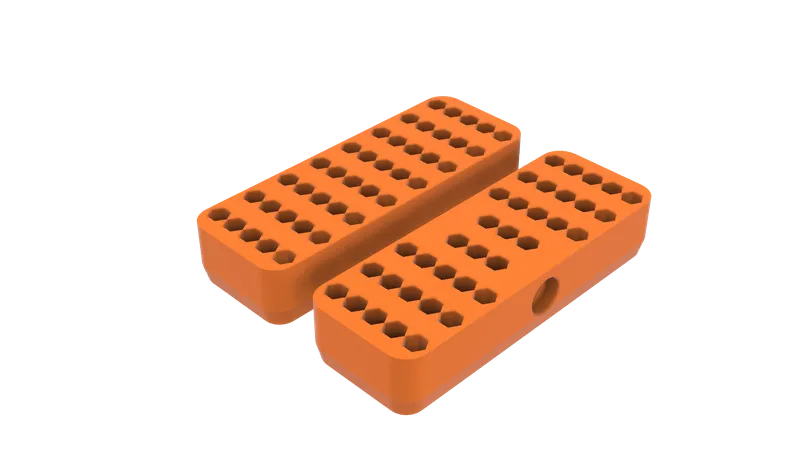

Alvomane made a great remix of bits-holder: one with 55bits and one with 47bits and the magnetic/finger recesses.
https://www.printables.com/it/model/465349-high-capacity-bitholder-for-miniware-es15-cases-mi
20/12/2022

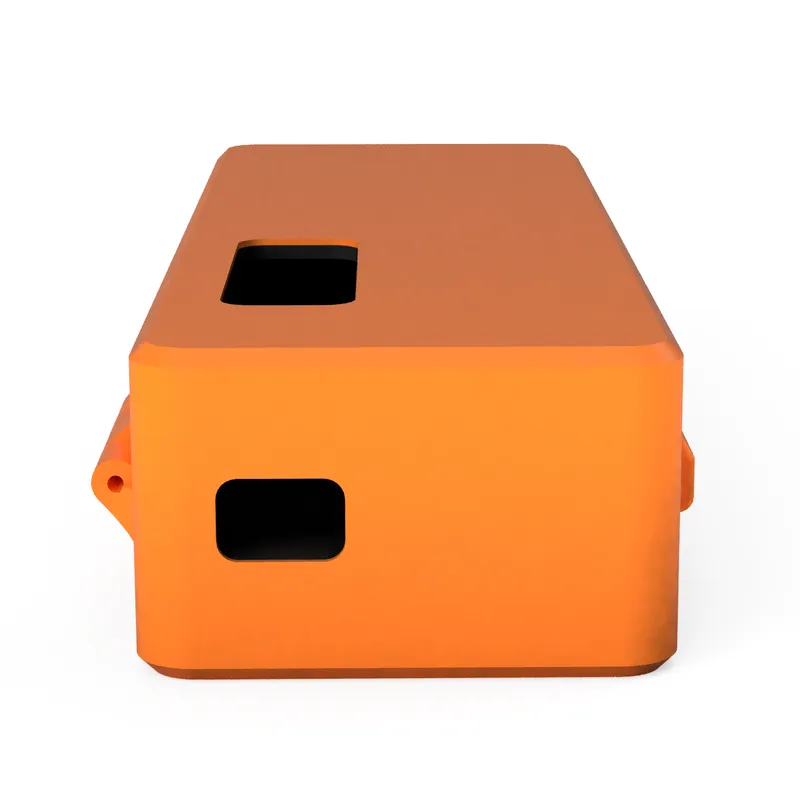

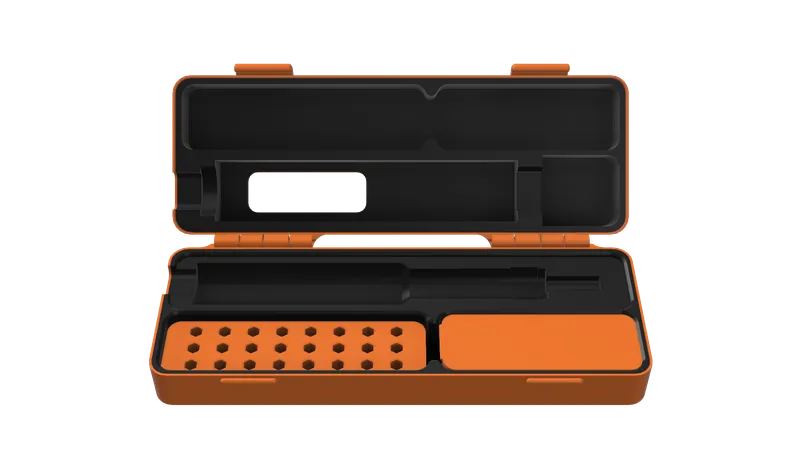

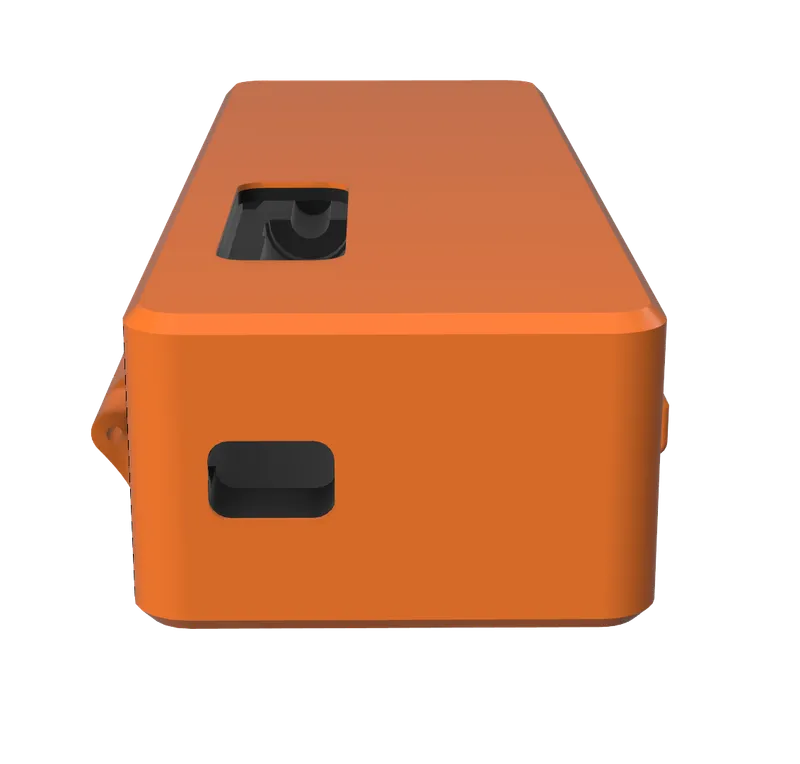

Added a new model with holes for charger and top window.

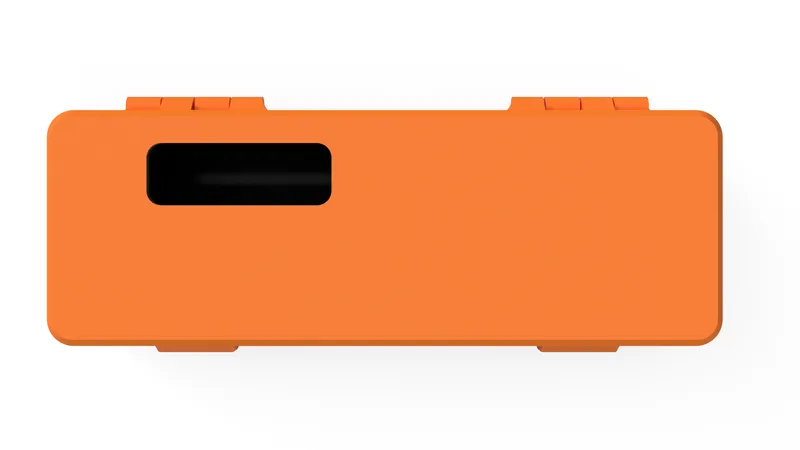

The charging hole is 10x15 mm. The top window is 16x50 mm.
What I made and what I've changed
The shell of the case is from orax Pinecil case.

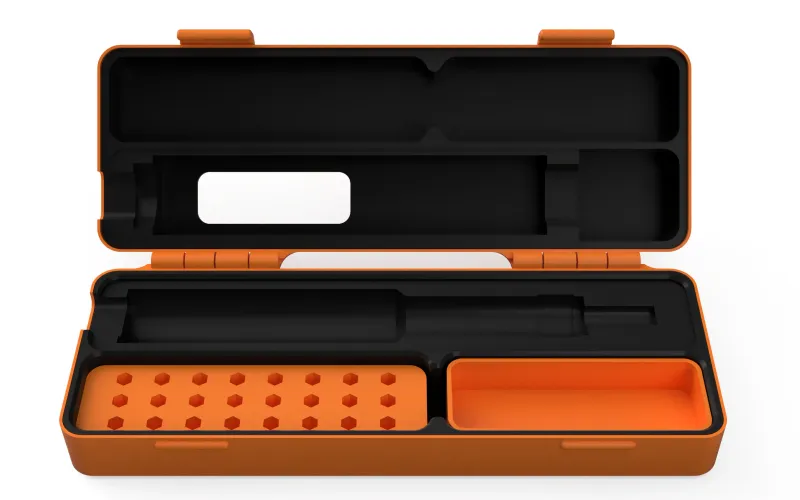

I made the new inserts for placing the Miniware ES15 taking inspiration from 3DP-MAMSIH.
Also taked the bits holder design, but i made also a version myself(alternative bits holder) I dind't tested it as I printed the one already made, but I think it will work.

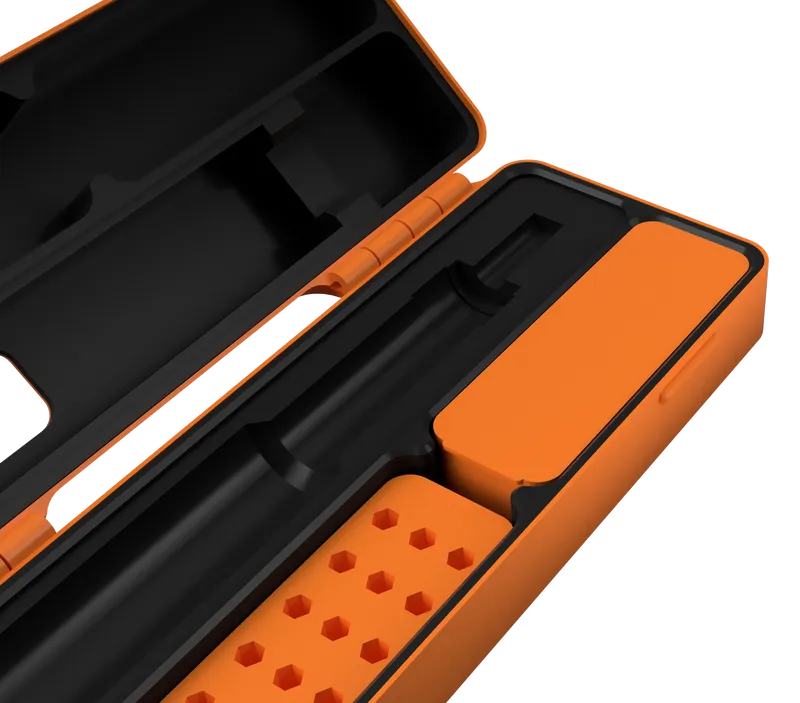

I made a removable vain for placing screws and other components.
Assembly
The assembly process is the same as Orax Pinecil case.
There is a multipart version like in the photo and a joined version to print in one go.
Just print the version you like, assembly and then add a piece of 1.75 mm filament in the
hinge mechanism to join the top and the bottom.
Like in the 3DP-MAMSIH, there are holes for 8ø x 3 mm magnets for keeping bits holder together.
Printing
I was able to print it on the Prusa mini+ orienting the pieces at 45 ° (taking advantage of the length of the diagonal ), removing the skirt and leaving the brim.
Print can take up to 3 / 4 hours.
For the accessories is the same, but you can use all the space of the printing bed.
For printing material I used orange Prusament PETG and black generic PETG.
Suggestion
If you have any requests for future accessories or changes let me know :)
Tags
Model origin
The author remixed this model.
Differences of the remix compared to the original
The shell of the case is from orax Pinecil case.
I made the new inserts for placing the Miniware ES15 taking inspiration from 3DP-MAMSIH.
Also taked the bits holder design, but i made also a version myself(alternative bits holder) I dind't tested it as I printed the one already made, but I think it will work.
I made a removable vain for placing screws and other components.
