CNC Phone Mount Adapter
This adapter allows to use an aluminium smartphone bike mount to hold your phone while using it as a grbl controller.
4
12
0
252
updated
October 23, 2022
Description
PDFParts
- 1x printed adapter
- 6x M5*12mm socket head screw
- 6x M5*10*6 hammer nut
- 2x M4*16 flat head screw
- 2x M4 square nut

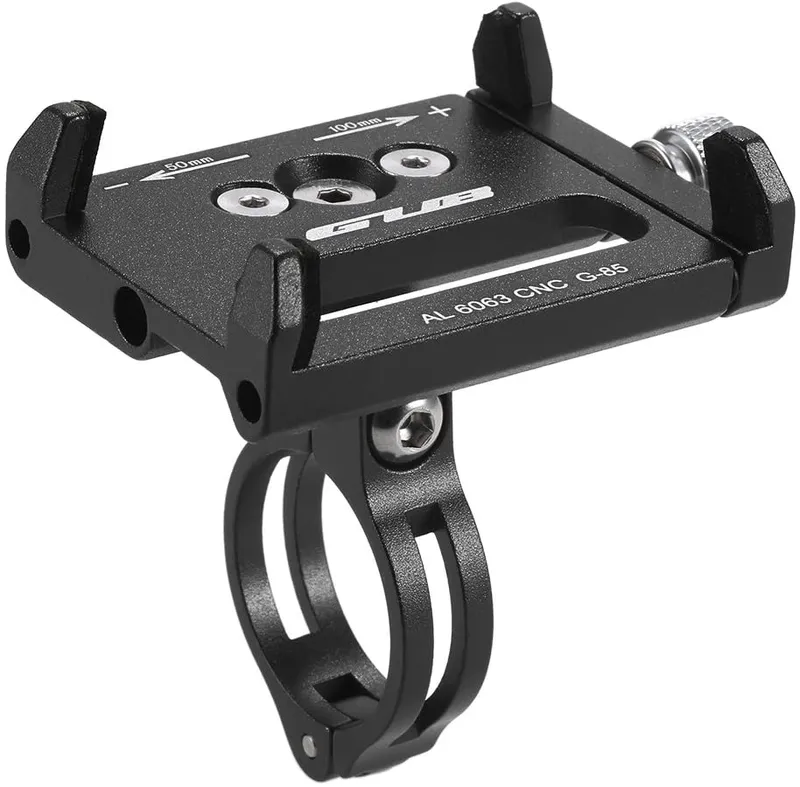

- Smartphone Bike Mount
Instruction
- Separate the Smartphone from the bike mount
- Screw the phone mount to the adapter using M4 square nuts and screws
- Tighten the assembly to your extrusion using M5 nuts and screw
