It does not fit in the recent version of AMS.

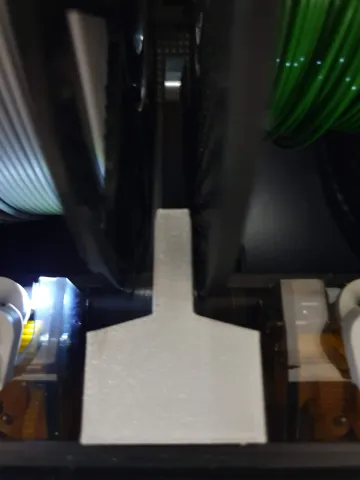

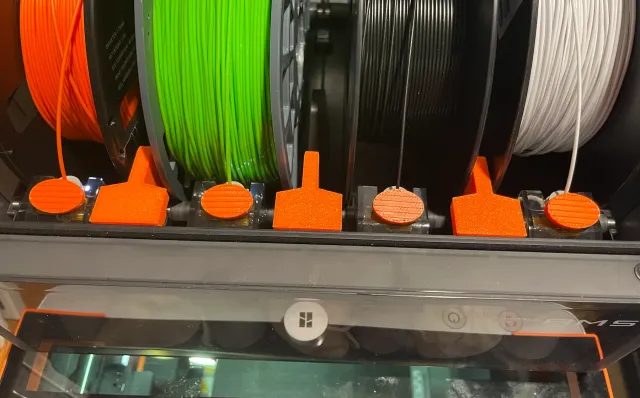

Bambu AMS bearing block support/fix
This was my solution to the problem of the bearing block fractures.
80
253
2
5942
updated October 14, 2022
Makes
Comments
Hi, is it for the AMS V2? I've printed an other one and it wasn't fit.
I don't quite understand what issue this is addressing?
@DamienG_116972 On the AMS v1 and v2, the bearing brackets that hold the rollers in place easily broke when there was too much force from the spool hopping or dropping on the rollers. The spool could hop when the spool edge is not smooth and gets rolled over.
Could you please explain more what problem it solves?
@Lemanito On the AMS v1 and v2, the bearing brackets that hold the rollers in place easily broke when there was too much force from the spool hopping or dropping on the rollers. The spool could hop when the spool edge is not smooth and gets rolled over.
Thanks for creating this! I like the idea of not having to attach the reinforcement supports permanently.
I came across two issues I'd like to share:
1. This model doesn't fit the AMSv1 very well. The space between the roller bearings is much narrower compared to that on the model. This causes the roller bearings to only be pressed down from the center/split instead of the bearing wells of the print.
2. The center column on the AMSv1 doesn't have "fins" that holds the block support centered and in place. This probably isn't an issue since the cover will hold the block down and minimize the block's movement.
@GarrickCheung_335512 download my remix
looks like a much better design. definitely going to print this.
Not sure to understand how it holds in place ?Do you need to glue it ?
