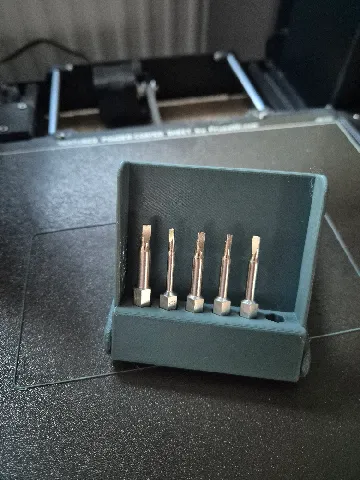

That's exactly what I was looking for! I just didn't adjust the XY Size Compensation, so the holes are a bit tight.

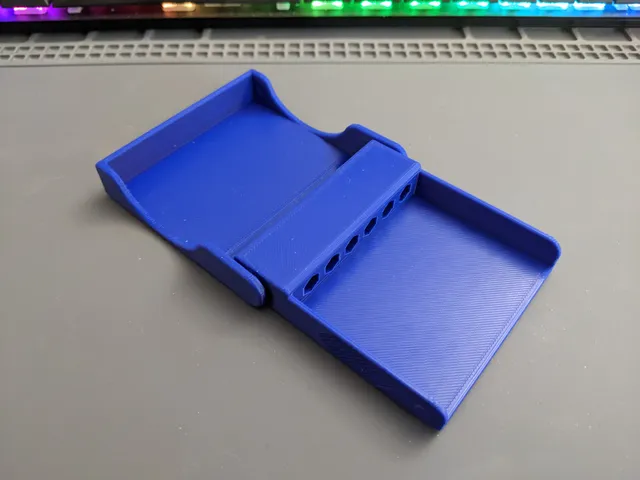

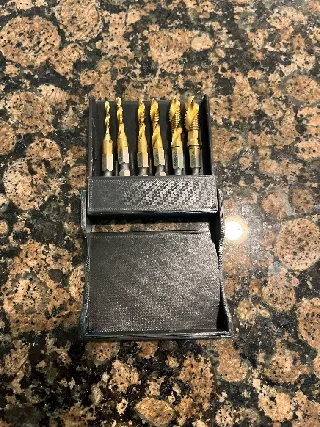

70mm Hex - Tap or Screw bit box
I designed this box to keep my hex type tapping bits safe. Its designed for taps but can be used for any large hex bits.
34
144
5
560
updated
April 6, 2023
Makes
Comments

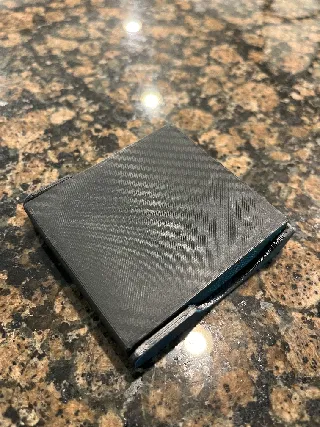

How did you model the cross-hatch pattern for grip on this? I'd love to do something similar on something I'm working on!
Vielen Dank für Deine Arbeit. Sehr praktische Aufbewahrung für Hex- Gewindeschneider .
Hi,
thanks for the gerat design. I really like it.
I would also like to adapt it to other sized drill bits.
Would you be open to share the step files?
In any case: Great models :)!
Great model, thanks for sharing!
Would you mind uploading a STP? I like to remix it for the 3 piece step drill set and other hex shaft tools, such as countersinks.
I foolishly tried the all in one first, but forgot to turn on outside walls first. That combined with my lack of dimensional tuning meant that I couldn’t get it to work. Printed the second time in too pieces, and the bits are snug, but it works! If I need another one, I’ll scale it up 2%. Great model though!
I really like the design. I only wished for separate files as I always struggle with "print in place".
@cryxli Hi, I have now included separate files if needed.
