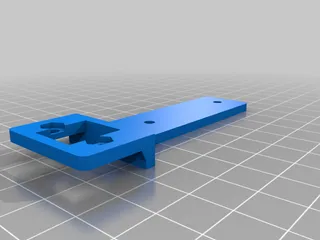

Maker Select v2/Wanhao Duplicator i3 v2 RAMPS 1.4 and MOSFET Mount

Remix from https://www.thingiverse.com/thing:2374376, which provides M5 bolt holes. This version makes the following changes:

• Mounting holes are sized for M3 screws (at least M3x8) to attach to the frame of a Maker Select v2/Wanhao Duplicator i3 v2. Requires M3 nuts on the other side of the frame to attach
• Fixed the MOSFET screw holes so they all print smoothly
• Added insets for the nuts on the AT2560 board mount to match those on the MOSFET board mount

Tinkercad available here: https://www.tinkercad.com/things/gFzUXqfMBum-maker-select-v2-ramps-14-and-mosfet-mount/edit?sharecode=UFOvt-EGhu0nxCR_G9DA0xLjPiWLMfc4qLFpNGXNFuA

Print Settings

Printer Brand:

Monoprice

Printer:

Maker Select

Rafts:

No

Supports:

No

Resolution:

0.2

Infill:

10%

Filament: Overture PLA Silk Neon Green Post-Printing =============

Make sure to clear excess filament from the screw holes before sliding in nuts for attachment.
