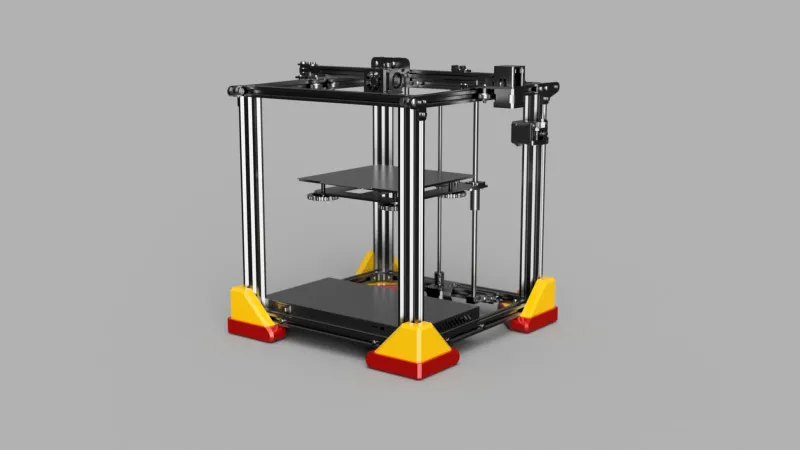

Ender 5 Riser Feet 30mm PLA+TPU

BENEFITS

• printer is more stable and less vibrations
• bigger z stepper motor or lower the motor to gain 20+mm
• more space for a bigger psu/mcu fan
• could be used with or without TPU parts

PARTS

PLA/PETG

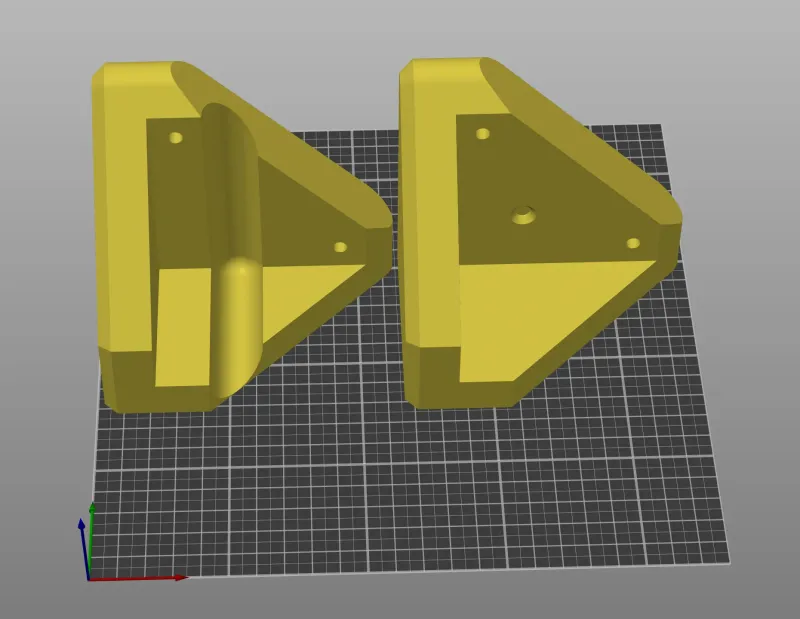

3-4 perimeters, 20-30 infill. The heavier it is, the more stable the printer is. No supports needed if you print in current orientation (with holes on a vertical wall - see bellow).

foot_normal.stl - you can print a set of 4
foot_cables.stl - If you route your cables on back-right profile

TPU/FLEX

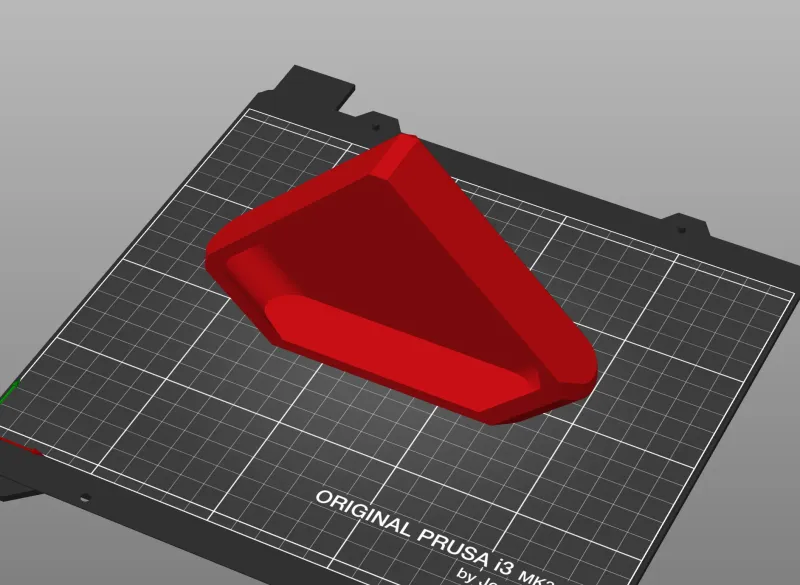

3-4 perimeters, 20-30 infill depends on your TPU flexibility. No supports needed if you print in current orientation (with the tip up - see bellow).

base_normal.stl - you can print a set of 4
base_cables.stl - If you route your cables on back-right profile

BOM - for one foot

• 2 x M5x20mm Hex Socket Head Screws
• 2 x M5 t-nuts

Disadvantage: you will need to relocate the display - but this could be a very fun side project :)
