ATX POWER SUPPLY BRACKET - MasterBox NR200 & MasterBox NR200P - Official

Compatible with Cooler Master's MasterBox NR200 and MasterBox NR200P.

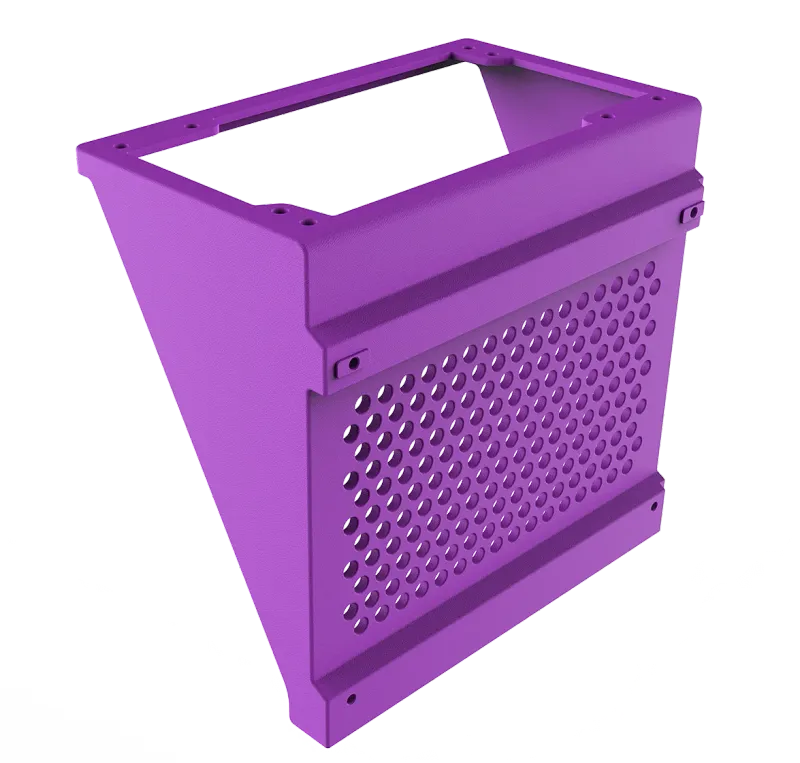

The design of the bracket is ventilated for actively cooled units to be installed, independently from the orientation of the intake fan. The bracket is also compatible with passively cooled power supplies.

To accommodate for a high range of builds, we created 2 versions of the ATX PSU bracket. Choose yours depending on the length of your graphics card, power supply, and depending on the number and location of installed fans in the system.

Please note:
1) Higher Bracket Position
Incompatible with the front-most top mounted fan.
Note: we recommend 140/150mm max long ATX PSUs in combination with the top mounted 3d printable ATX PSU bracket for maximum compatibility.

2) Lower Bracket Position
Fully compatible with 2x 120mm fans in the top panel.
Max GPU length supported: 240mm.

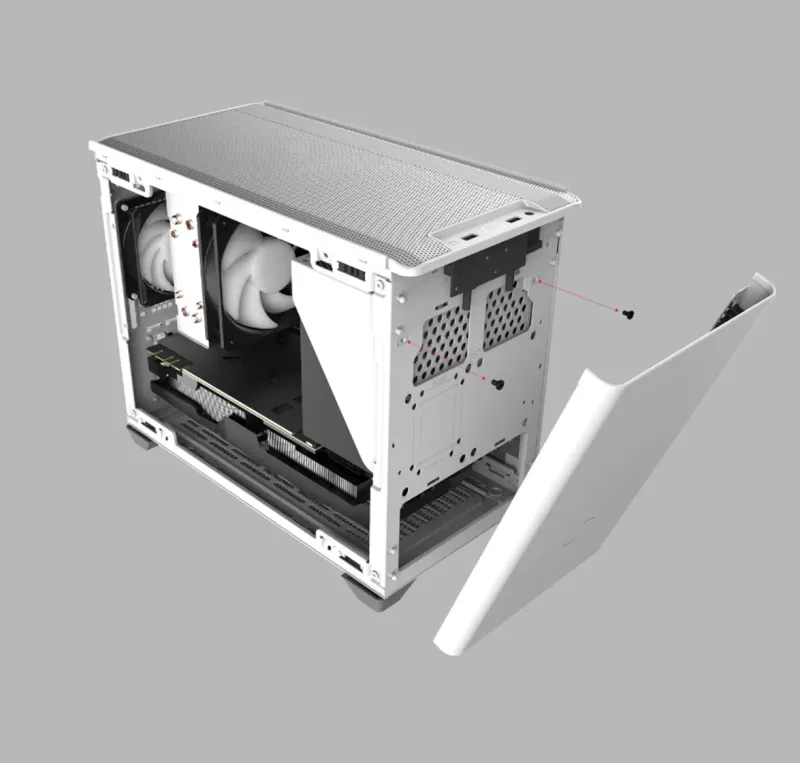

The ATX PSU bracket is extremely easy to install. Just mount your ATX Power Supply, remove the front panel of your NR200/NR200P, and secure it to the frame with the included screws.
