Cooler Master Pi Case 40 - Official 3D model

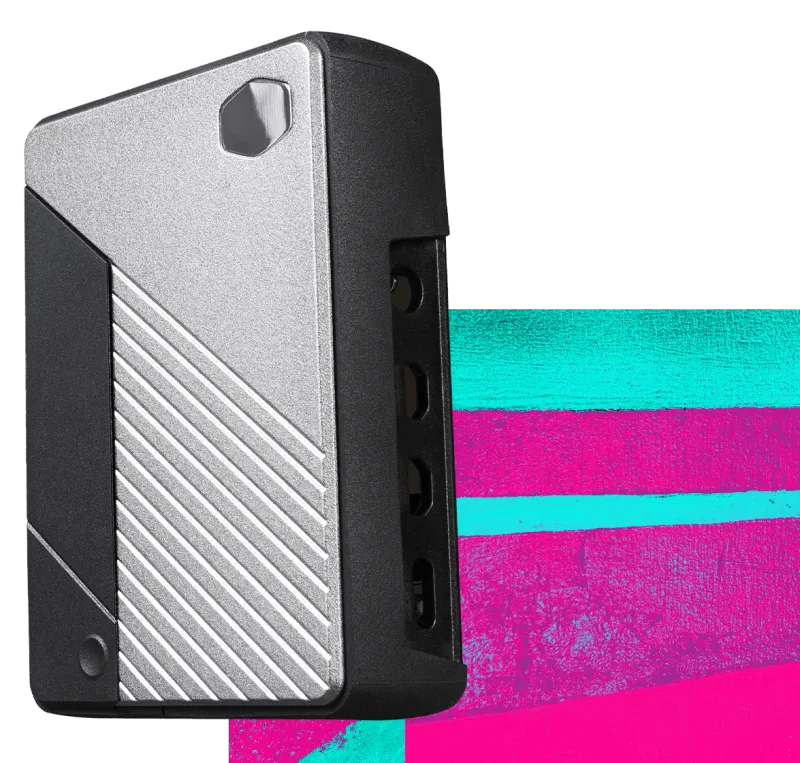

The Cooler Master Pi Case 40 (now V2) provides a long-lasting, premium enclosure for Raspberry Pi pro-users, featuring a sleek aluminum shell, and a high-grade TPU bumper for further protection. Once assembled, the system provides silent, efficient cooling without the need for an additional fan, even at high clock speeds thanks to the aluminum shell.

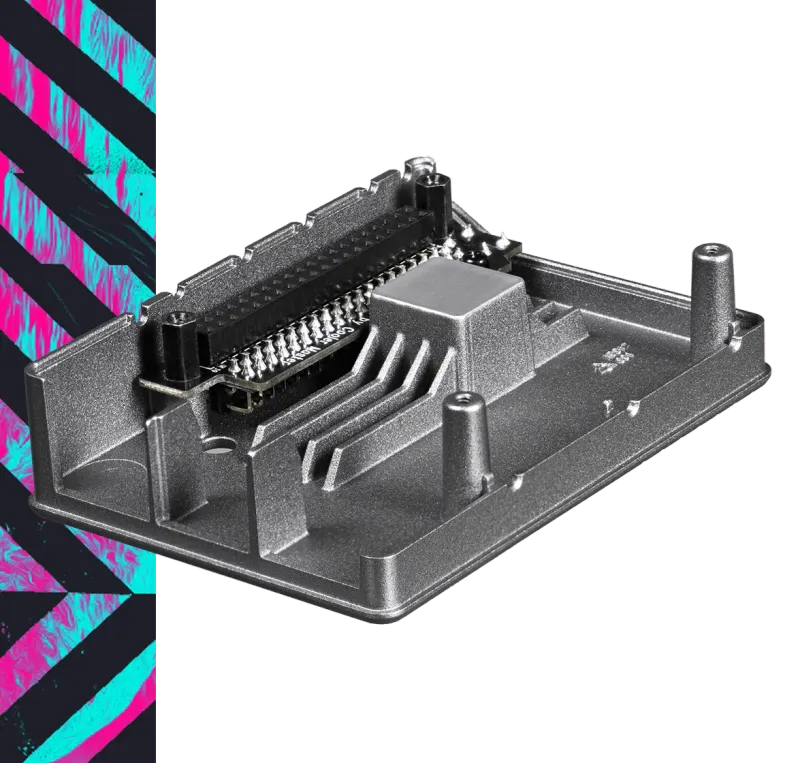

The Pi Case 40 V2 is the best performing passive cooling case of its kind on the market, thanks to the aluminum core which serves as a large heatsink, enabling higher GPU and CPU frequencies out of the box.

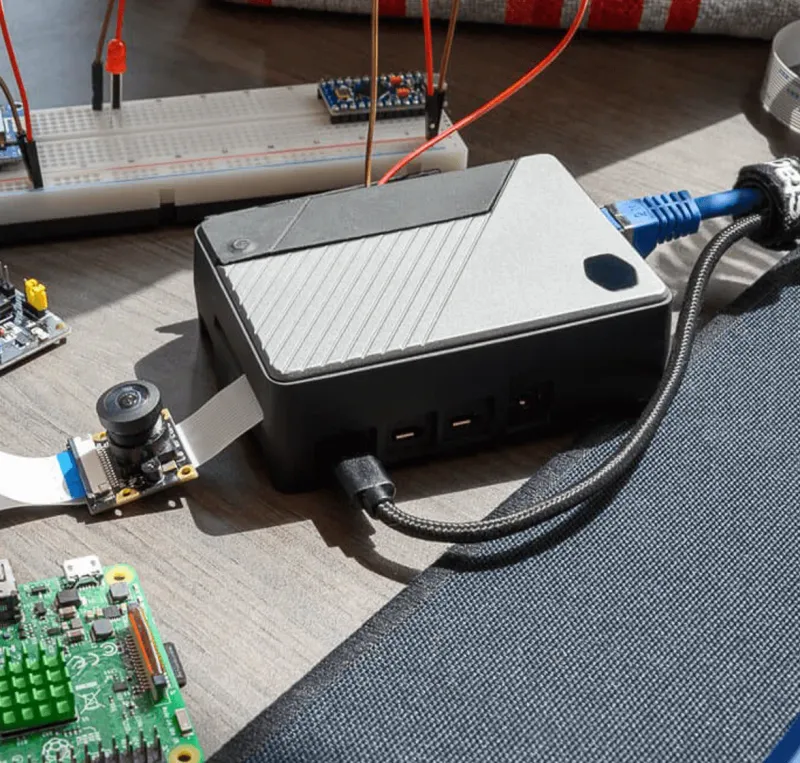

All ports are quickly accessible thanks to a no-interference design. Standardized GPIO ports are rotated 90 degrees and accessible via the side flap in the TPU bumper, allowing for protection when closed and easy access when opened. Display and camera connectors remain within the enclosure for extra protection, with a slit in the TPU bumper to allow cables to be routed outside.

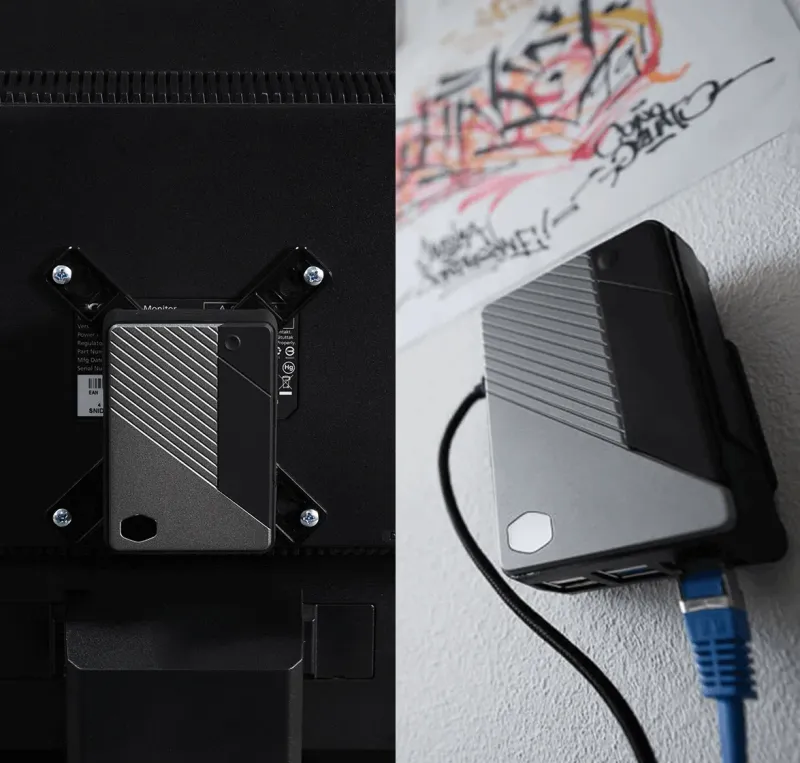

4 VESA/wall mounting brackets come included to fix your Raspberry Pi to every surface and monitor.

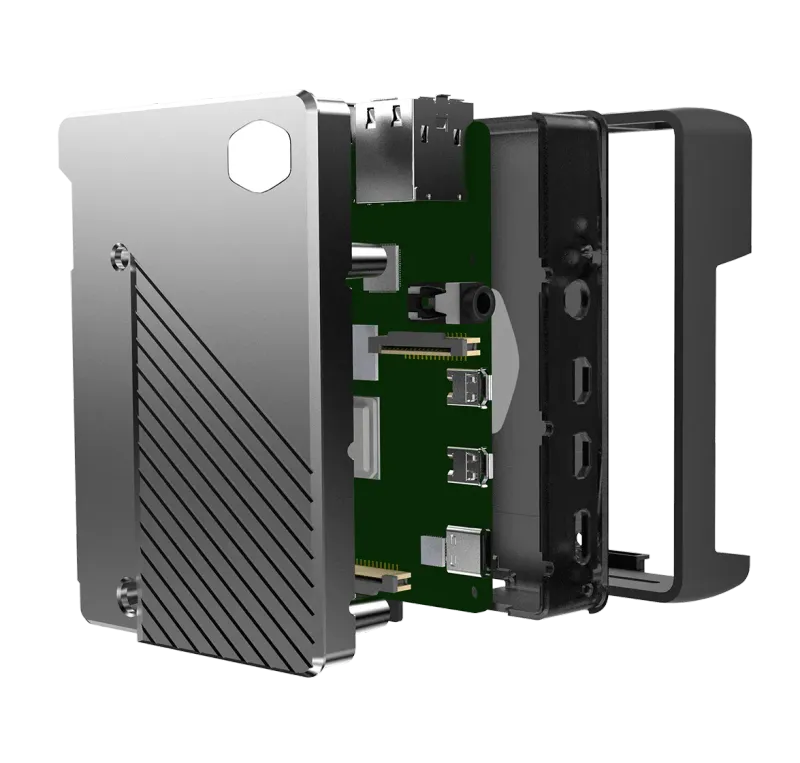

Built as a passion project for the community, the Pi Case 40 V2 is designed to be open source, and fully customizable for a multitude of uses. Design assets are free to download and modified for 3D printing.

Retro-compatibility, different mounting attachments, new colorations, customized top designs… anything is possible with the Pi Case 40 V2.

The design is free to download, modify and optimize for any kind of specific and specialized implementation. Retro-compatibility, different mounting attachments, new colorations, customized top designs... Feel free to express yourself!

On Cooler Master's Printables profile you'll also find free-to-use .STP files with attachments for M.2 and 2.5" drives, DIN mounting compatibility and more!
