fit perfect, printied with an old trash pteg, and still worked fine.
i just feel the border are a bit "brittle" but it's ok, 5 star !

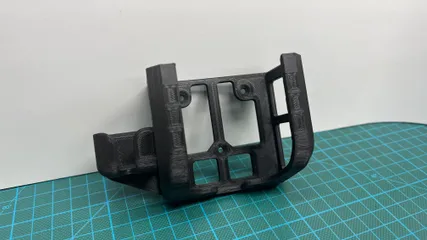

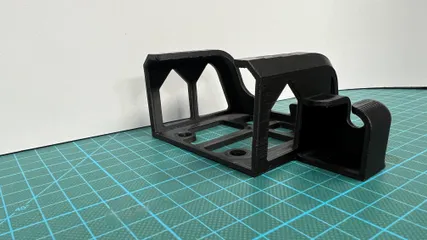

Wandmontage Bosch E-Bike Lader 36-2 BCS230 / Wallmount Bosch E-Bike Charger 36-2 BCS230
Wandhalterung für Bosch E-Bike Ladegerät 36-2 BCS230 Befestigung mittels 5 Senkkopfschrauben. Weitere Ideen besuchen…
40
396
7
2418
updated September 26, 2022
Makes
Comments
Printed with Sunlu PETG
Came out very nice and fits perfect.
I added with tinkercad the 230V plug holder from the 4A remix model.
Massive shout-out for sharing the fusion file. As I'm new to the whole Fusion 360 CAD thingy (did some limited work in sketchup only) it helped me A LOT to see how it was build from the ground up. It helped me improve my Fusion skills so i could make a 4 amp version (wich was a little more then just changing mesuring numbers). :)
Also von einem niederländischen CAD-Neuling ein Bier für meinen deutschen Nachbarn! ;)
Printed in ABS-CF
Fits perfect on the 36-2/100-240 charger.
This will not fit the bigger 36-4/230 charger.
Thanks for charing the Fusion file, i will use it to adhusted the bracket so that it will fit the bigger 36-4 charger.
View one more comment
@Bouli_599629 That is great. I also redigned it, but sins you already posted it here on Printables, i don't have to do that anymore ;-)
@AlexV if your version doesn't have the "upgrades" you can just post it for people who don't like those. ;)
Great model.
Amazing Fusion360 file. Wow.
I tried to add a holder for the Euro plug, but I am not yet an expert in Fusion360 and did not succeed.
That would be wonderful if you could still fix the Europlug to the holder.
Thanks for sharing!
Printed with Extrudr GreenTEC Pro black.

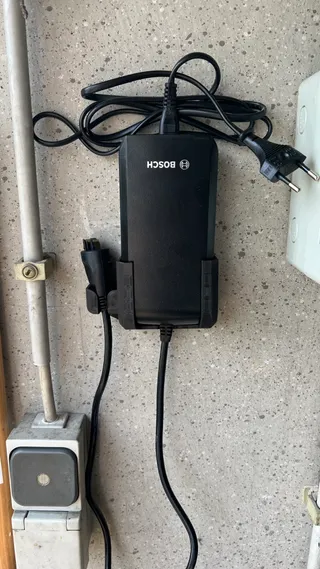

@Freddysix Hello thanks for your feedback, with me the plug is always plugged in and is switched on and off at a switch and he socket.
send me here times a picture of where you would like the holder for the euro plug, then I can construct the times one ifs the time gives it
@JOGIAREA
Thanks for the feedback and the offer for the bracket. :)
Your solution to use it with a switch-socket combination is also a good idea.
On the right side it would be quite good to attach the euro plug.
There are already some solutions - but for other chargers.
