🧥 Parametric clothes hanger with folding hooks (multiple hooks on a rack possible)

Info + features:

• parametric source file (so you can create any length with any amount of hooks that fit your printing plate)
• it is on purpose NOT print-in-place, so anyone can have colored hooks
  • just pick a rack and print required number of hooks for it
• it is printed standing → allowing the front surface to be smooth
• invisible joint. Even when hook can be put on and off - from the front the joint is completly invisible, so it looks as in print-in-place solution

Print info:

• see 3mf if you can
  • rack must be printed upside down!
• PLA
• no supports
• no brim (at least for clean plate surface), but use brim for textured plate.
• 0.2mm layers but recomending variable layer height for the hook (the higher the thinner layers, because hook is angled towards the top)
• infill: recommending at least 10-15% gyroid
  • with reinforcements especially around:
    • the joint (especially the part where hook is pressing up when wide opened)
    • the hole for attachment to the wall
  • consider higher % when planning to hang extra heavy objects

Parametric info:

• source file is in Blender, open it, between objects, click “RACK” and open properties (or hit “N”)
  •

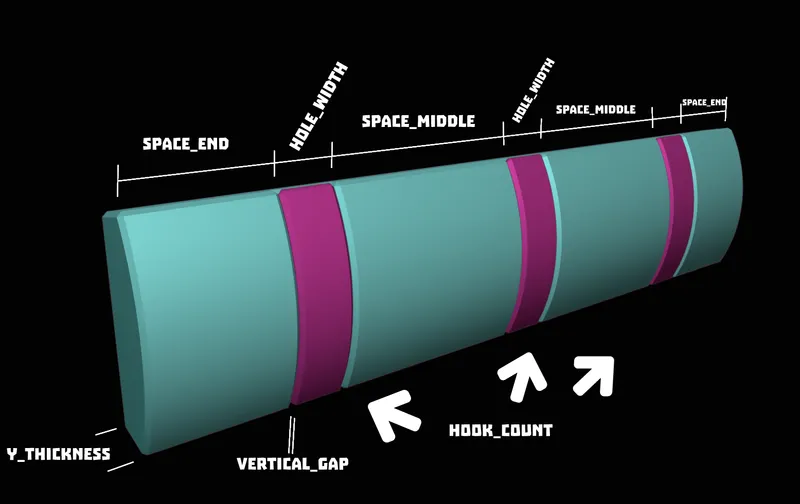

• params:
  • hole_width: width of the hole for a hook in cm
  • hook_count: number of hooks
  • space_end: distance from one side end to the nearest hook
  • space_middle: distance between hooks
  • vertical_gap: gap between hook hole and hook
  • y_thickness: thickness od the rack and hook (quite experimental, other than default value may work not that well)

I understand that not everybody is familiar with Blender, so if you were not able to modify params in Blender and export it to STL, just write me requirements.

Assembly:

• click the hook inside from the behind, little force is needed
  • so it is positioned correctly in the joint and can rotate (it must be fully inside, see photos)
• from the start it may be tough to move, but that is intentional, after a while of moving it should be easier

Load test:

• hanged on it 5kg (on one hook) and it was looking good
