iPhone 14 Pro Slim Bumper Case

I have got myself an iPhone 14 Pro. Naturally I need to make this, just like 2 years ago ;)

I added two cat ears to make sure when set on a flat surface, the cameras will have a 0.5mm clearance, and the entire phone doesn't teeter-totter XD

----------------------

To install, fit the top two corners in first, then one of the bottom corner, then force the last corner and push it in. It's a snap-in design so you have to force it.

----------------------

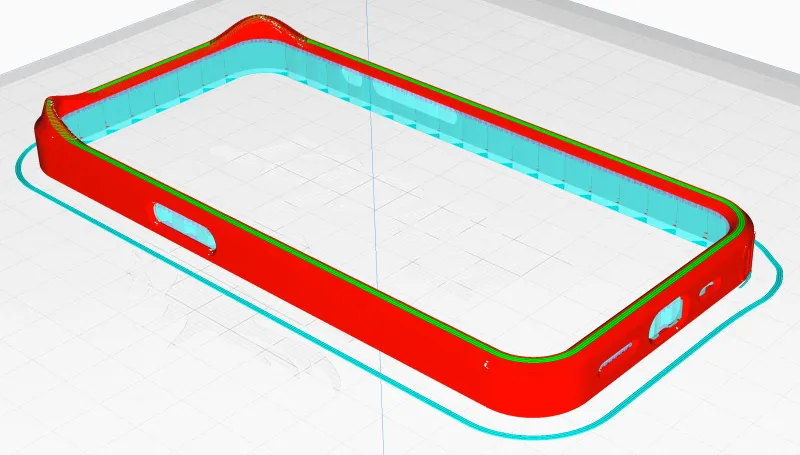

Slicer Settings

In order to successfully print this one, here are some of my suggested slicer settings:

• Layer height: 0.16mm (you can go from 0.12 to 0.2mm)
• Support Pattern: Zig Zag
• Support Wall Line Count: 0
• Support Infill Line Directions: [45]
• Enable Support Brim: Yes
• Support Brim Width: 4mm

The support settings is to make sure the support is easy to remove, still retains its integrity, while prints relatively fast. Otherwise with a support that's too strong, you risk damaging the print itself.

Make sure the long sides are on the less-ripply side of your printer, unless you wanna see more ripples on a big surface every day.
