Caravan window handle with bolt

Description

Caravan window handle for old caravan. Distance between bolts is 28mm. Model contains of 4 parts of the handle, stop and otdoor cover.
While printing  Handle_base, insert pause at 4,4mm and insert M5 nut.

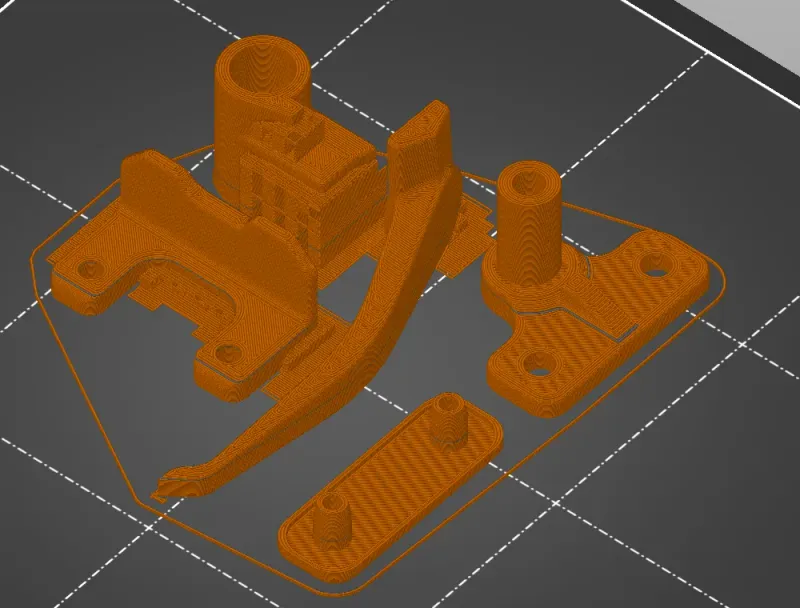

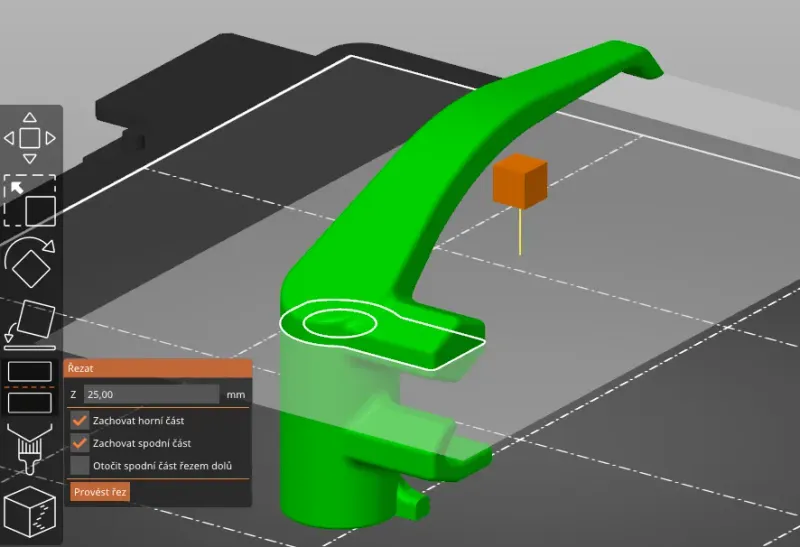

Handle top has to be cut in 25mm. And than printed as shown in picture.

Than circular parts are bolted with bolt DIN 912 M5x30mm. After that handle is glued to the top.

Rest of the parts are printed later.

Handle_top and Stop needs supports.
