The button of my WC water valve was damaged and tap could not be turned off anymore

34m

1× print file

0.20 mm

0.40 mm

4.00 g

226

972

updated October 19, 2022

Description

I started from the design https://www.printables.com/model/108115-bouton-de-robinet-darret-wc made by Paterne and I added the stops to the bottom part so that the tap closes and opens on 1/4 turn (Blue arrows)

Printing instructions

Printed in Prusament PLA Galaxy Grey with PrusaSlicer standard parameters using

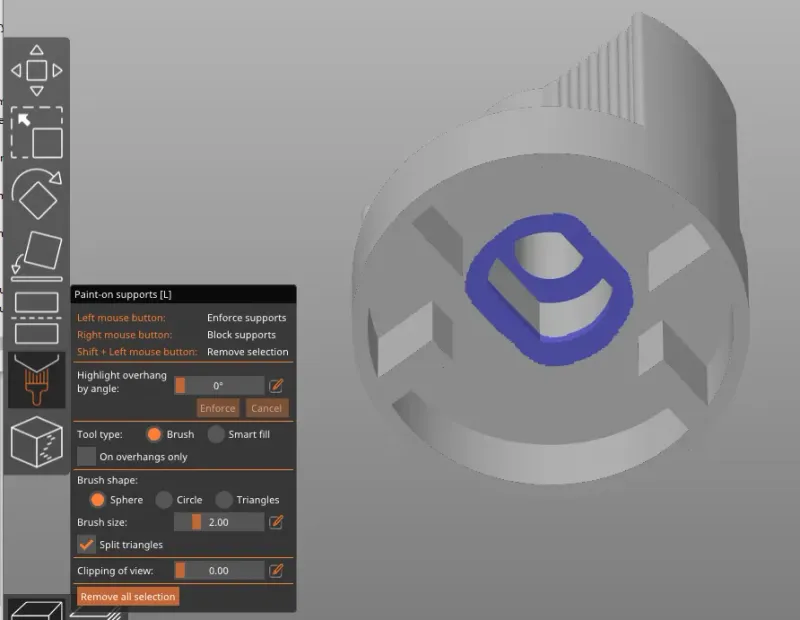

Support are needed for the bottom part. I used Paint on Support feature to define where supports are needed

On top of .stl and .3mf files, I uploaded Fusion 360 .f3d file so you can modify the design and adapt it to your needs

As usual, feedback and comments (and for sure "likes") will be always welcome. Feel free to post nice pictures of your makes

Enjoy

If you like this model, take a look also at my other designs
