🅣🅔🅛🅔🅢🅒🅞🅟🅔 tripod weight

Fixture to add weight to the telescope tripod which dramatically reduces trembling while observing.
10
27
0
376
updated December 30, 2022

Description

PDF

Designed for bresser tripods but would fit any similar model.

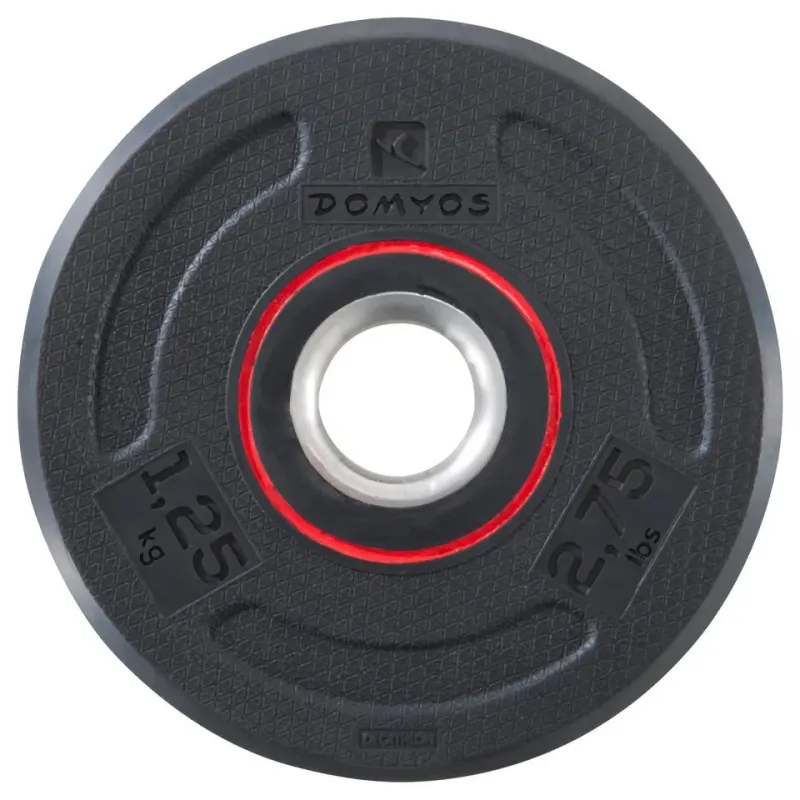

Any gym weight disc with an inner diameter > 28 mm but < 35 mm would fit.

Minimum stack height 25 mm since the thread does not go all along the shaft. Maximum discs stack height = 40 mm.

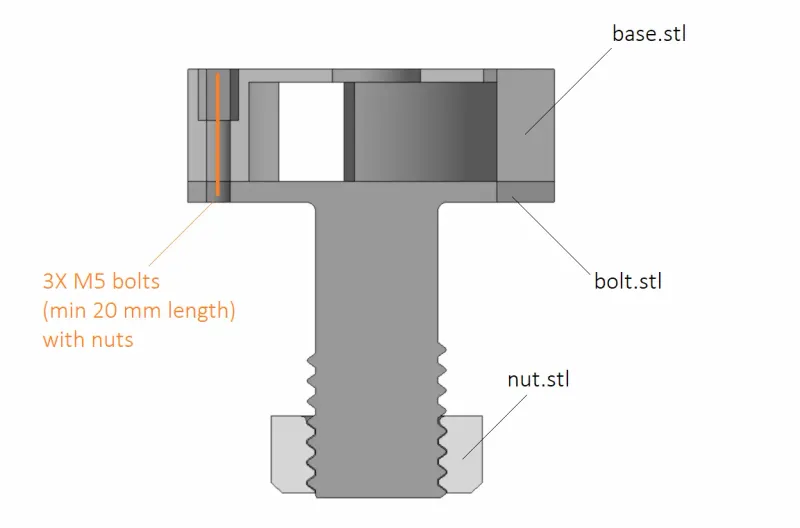

Hardware needed: 3 X M5 bolts (min 20 mm length) with nuts.
