Light pipe (3mm) mount for 5mm LED

Press fit mount for 5mm LED and 3mm light pipe
3m
1× print file
0.20 mm
0.40 mm
1.00 g
7
28
0
457
updated August 12, 2022

Description

PDF

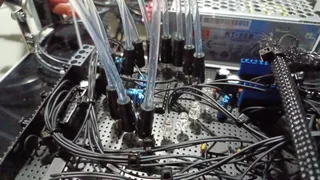

I needed to attach some light pipes to LEDs on a PCB, and these work fine although heat shrink tubing probably is cheaper and more practical.
