Syringe Dosage Helper

OpenSCAD Source code: https://github.com/johan-adriaans/SyringeHelper

What is it

This is a precision tool that you fit around the syringe plunger to get a precise dosage of insulin.

Note: When using 30 units 0.3ml U100 syringes, you can precisely dose any liquid in ml. It can repeatably measure with 0,001ml prescision (home lab test).

Currently supported syringes

• BD Micro-Fine+ 0,5ml U40 8mm - EAN: 0382904876036
• BD Micro-Fine+ Demi 0,3ml U100 8mm 30G - EAN: 0382904826031
• BD Ultra-Fine 0,3ml U100 12,7mm 29G - EAN: 0382903261031 (Added by Tony B)
• Braun Omnican 20 0,5ml U40 8mm - EAN: 4039239541936
• Sol-Vet U100 0,3ml 30G x 1/2" (0.3mm x 12,5mm) - GTIN: 0818392013016
• Sol-Vet U40 0,3ml 30G x 1/2" (0.3mm x 12,5mm) - REF: V3305-40 GTIN: 818392012682
• Insumed U100 0,3ml 31G x 8mm - Rev. 01/2019 REF: 02 022725 030 150 - EAN: 08058090005322

A syringe type is nothing more than a set of values in an OpenSCAD include. It is very doable to add a new type. The code should speak for itself, but feel free to contact me if you have questions.

Note that the U-100 version currently centers on the top part of the plunger. This is a design choice made by https://www.diabetes-katzen.net in their excellent paper version. Because we were initially using that, we kept the 0,1 unit offset.

Printer settings

Resolution: 0.16mm
Infill: 20%

How to use

1. First fill your syringe with a larger amount of insuline than needed.
2. Make sure all the bubbles are out.
3. Fit the tool around the plunger head.
4. Push the tool against the syringe body.
5. Validate your result. If your result is off, check if the printed index has an offset. You can see this at the 0 point.

Extra: The model has holes on the side where you can fit the rubber head of the plunger. Use this to mark your current dosage.

Create your own

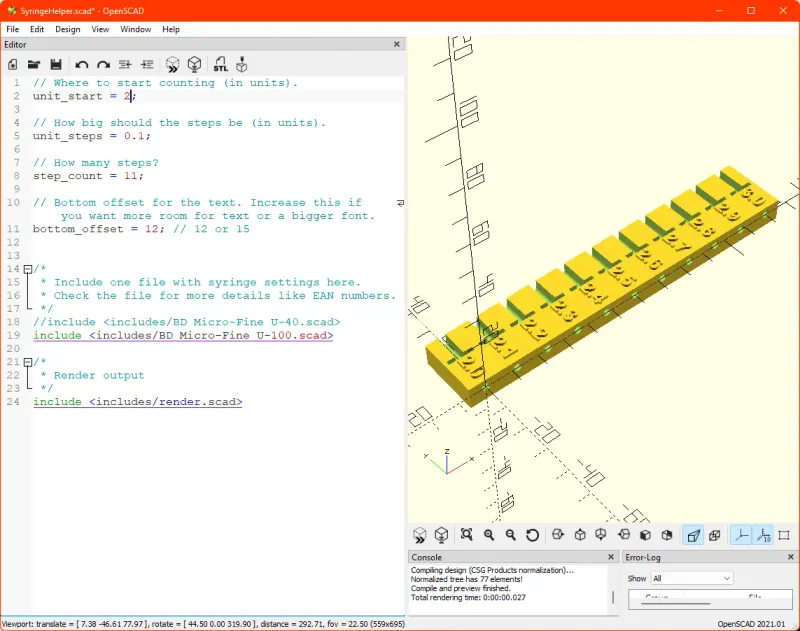

You can download the files from the git repository and open the SyringeHelper.scad file in OpenScad (you need the includes folder too). OpenScad is free software that allows you to make a 3D model by programming. It might be a bit daunting to start with, but if you use a supported syringe, it boils down to changing 3 or 4 variables.

How did you calibrate?

We started by just measuring the index size of a full syringe. So for a syringe for 30 units of insulin, we would measure the distance between 0 and 30 units in millimeters and use that to calculate a ratio. After that we did some test prints with 3 steps of 10 units to fine-tune this ratio. We went a bit overboard and bought a precision balance (Kern pcb 250-3) to measure our results. This scale can repeatably measure down to 1 microgram, so we filled our syringes with water and we were able to ensure our results were correct and repeatable. We discovered the plastic part of the syringe is dependable enough to use as a measurement support. Luckily only the printed index is imprecise.

Disclaimer

Please test your print before using. This was all calibrated for my 3D Printer (Creality Ender 3 V2). Do not assume my measurements are correct for your syringes. Test them on at least 10 syringes and decide for yourself if you feel comfortable using them.

Background

We have a cat that needs insulin. A cat is a lot smaller than a human and needs more precise dosing. The pens we found would only be configurable for half a unit of insulin, while an animal as small as a cat could need changes down to 0.1 units. We also found that most manual syringes have a reasonalbly dependable plastic mold, but imprecise printing. The printed index on the syringe could differ up to 0.2 units. Long story short, it is impossible to measure a repeatable, precise dose without some sort of tool.. So we made a tool.

PS: If you have a diabetic cat and you speak Dutch, feel free to join the forum Diabeteskatten.nl for expert advice and support.
