Snapmaker 2.0 enclosure screen holder 3030 angled bracket

This piece allows the relocation of the Snapmaker enclosure screen holder to the outer angled aluminum extrusions.
5
46
0
352
updated August 13, 2022

Description

PDF

I found the original mount of the screen very inconvenient, as I couldn't see it from where I sit, and also it was impossible to detach the screen from the holder in the case without opening the doors.

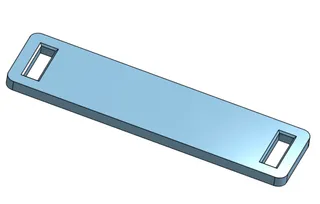

My solution was to mount the screen holder outside the case, and close up the gap with some printed part that the original screen use to take.



The flat part of the cable fits well between the door and the extrusion, I used a cable bracket that was included with the snapmaker to redirect the cable, but please put some strain relief first.



Added step file for easier remixing and modding.



It can be printed on it's side, without any supports. This is good to avoid having the stress be put on the layer adhesion.
