Enclosure Printable Parts
All the official printable parts for your Original Prusa Enclosure.
1,569
20 k
125
92 k
updated
November 11, 2024
Makes
Comments

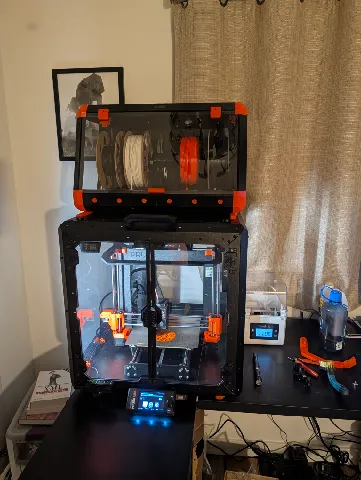

Printed for my old MK2.5S+ as I moved it into the now free space in the enclosure after I upgraded my MK4S to the Core One.
Quality of the parts is good, only the clamps of the LCD Display mounts are not gripping the circuit board tightly.
print settings:
-material: PETG
-layer hight: 0,15mm
-infill: 25%
-support: no
-brim: no
Can you buy the non-printed parts for the enclosure by themselves?

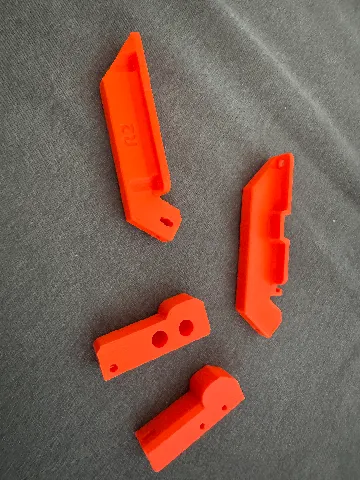

I only needed to print the brackets for the conrtol panel. Worked great. Made out of Prusament PLA. Please note that it uses the M3X5 and the square nuts that insert into the bracket. Do not just use a bigger screw. (edited)
Made these LCD adaptor brackets for use with the enclosure from PCCF. Note that the hole sizes are not correct for the supplied 3x12sT screws.. I had to open up the through hole to 1/8" and the counterbore to 1/4" with a drill which seemed to be an odd oversight in the design.
@Nick_8369 Please note that it uses the M3X5 and the square nuts that insert into the bracket. Do not just use a bigger screw.

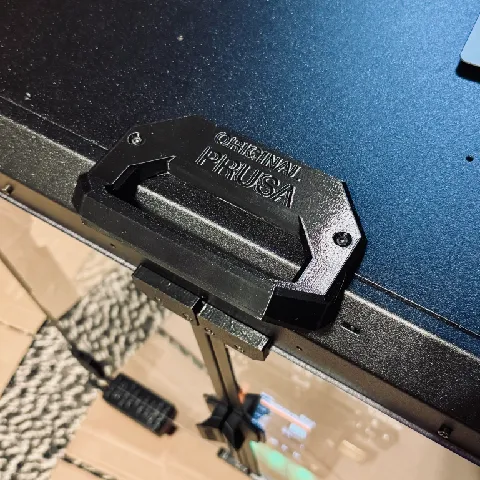

I love the Prusa enclosure and added a hinge as part of the MMU3 upgrade. It was a delightful surprise to see how to top of the enclosure flips upside down and transforms with a few printed parts. Prusa gives its products a little magic this way.
However, my review is 4 stars, not 5 stars, because there was a tolerance issue with the recessed holes on the handle and hinge lever that go over the raised holes on the steel sheet. I cracked the first handle while tightening a screw, because the fit was wrong. I ended up opening up the holes in Tinkercad to 7mm diameter. (edited)

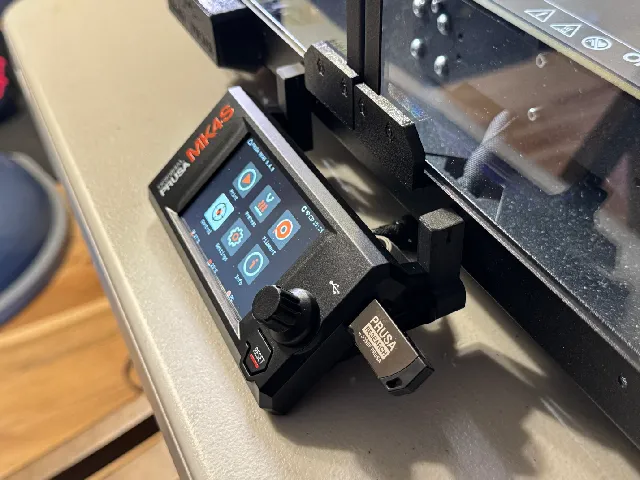

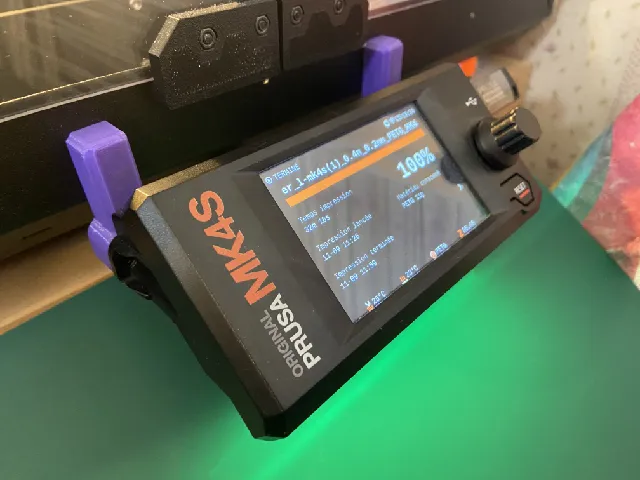

I'm printing xLCD-adapter_L (MK4S).stl and xLCD-adapter_R (MK4S).stl for my new MK4S. I'll print it at 103%, as someone advised in the comments.
I can't find any advice anywhere on which screws to use to attach them - can anyone tell me?
Edit: Found the instructions here: https://help.prusa3d.com/guide/2a-preparing-the-printer-mk4-s-3-9-s_475527#811855
Edit again: And this is the remix with holes that are actually big enough for the screws with the star-shaped heads that the instructions tell you to use! https://www.printables.com/model/1160200-xlcd-adapters-for-mk4s-with-original-prusa-enclosu (edited)
@Cassolotl_916920 Please note that it uses the M3X5 and the square nuts that insert into the bracket. Do not just use a bigger screw.
