GT2 Belt Clip for Kingroon KP3S

Reusable clips without damaging the GT2/2GT (width: 6mm) timing belts.

(Although these are designed for the KP3S, they could be used for other applications as well.)

Updated [ September 1, 2022 ]

──────────
A shorter clip has been added. (height: 4.4mm)
For this shorter clip, please use a zip tie of 2mm or less in width.
──────────

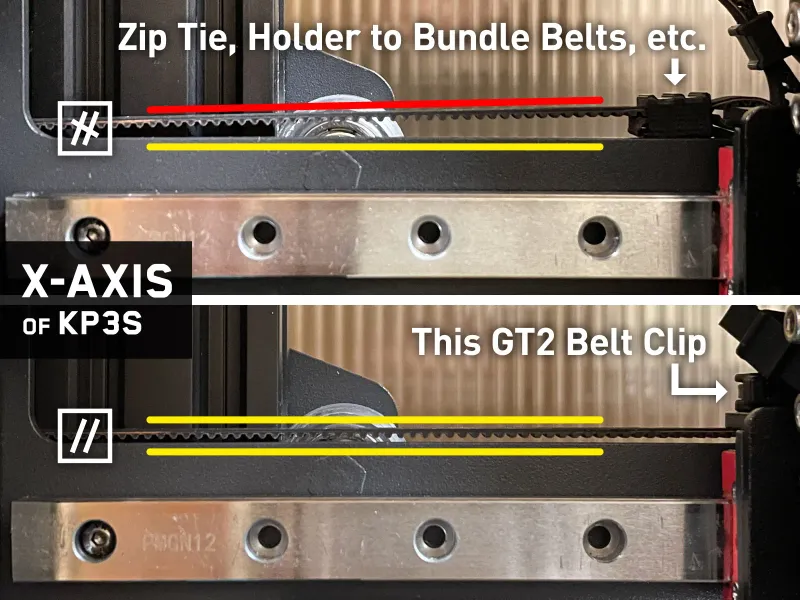

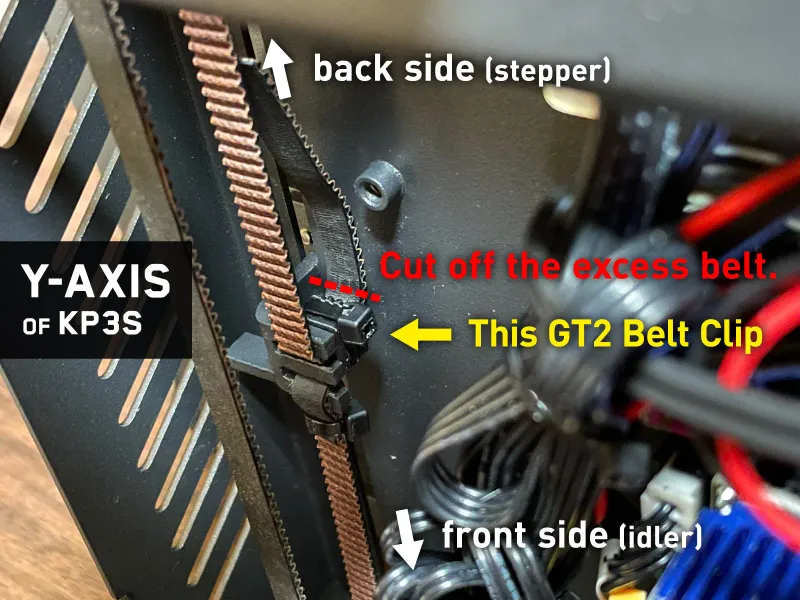

It can be used to set the correct belt path for the X and Y-axis of the KP3S.

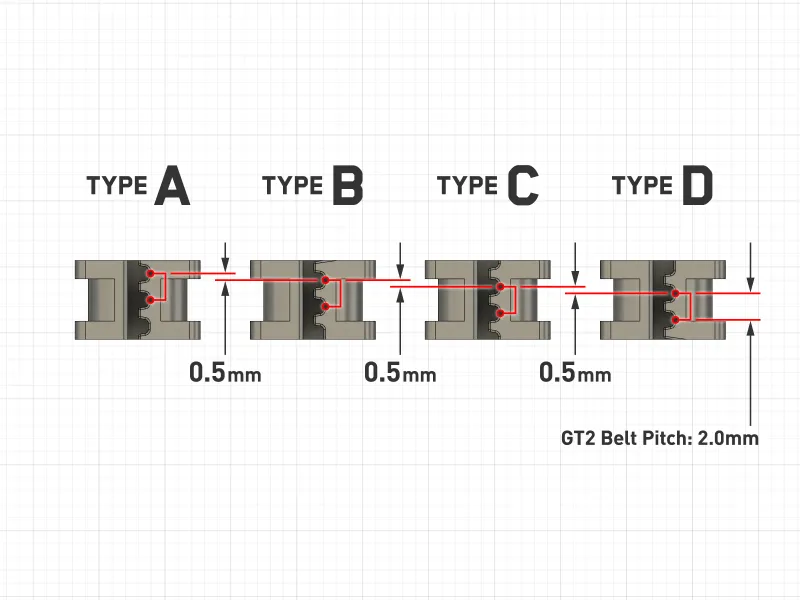

Furthermore, by using four different clips (type A, B, C, and D), belt tension can be roughly adjusted even for the KP3S without a tensioner.

Please use a zip tie of 3mm or less in width.
